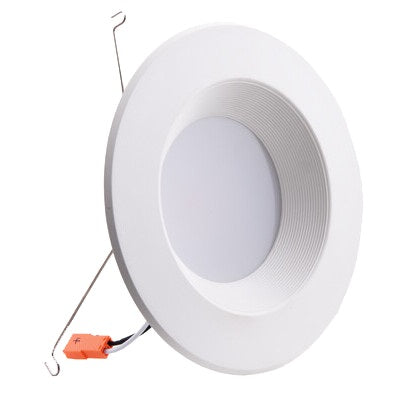

Eiko RDR Series Residential Downlight Retrofit White Trim with Baffle Triac Dimming
Eiko RDR Series Residential Downlight Retrofit White Trim with Baffle Triac Dimming
Specifications
Specifications
| Part Number# | RDR |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Hotels, Commercial Offices, Education, Hospitality, Retail, Banking |
| Lamp Life: | 30,001 - 40,000 Hours |
| Lumen Output: | 650 - 1,200 |
| Wattage: | 16 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, Energy Star, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Eiko |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:

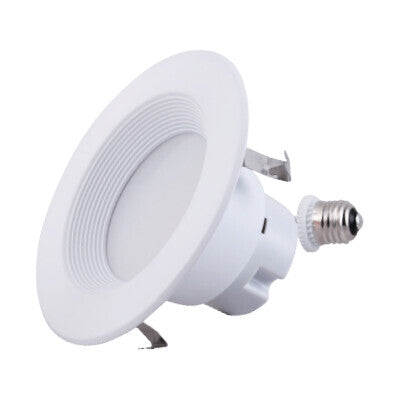

Eiko's Energy Star Rated Recessed Downlight Retrofit with Triac Dimming proves to be an outstanding replacement for CFL or incandescent downlights. The 4IN retrofit (10W or 13W) serves as an equivalent to a 65W BR30 Incandescent, delivering 650-850 lumens at a 3000K color temperature (80CRI), with the option for 27/30/35/40/5000K FieldCCeT (90CRI). Similarly, the 6IN retrofit (11W or 17W) is comparable to a 75W BR30 Incandescent, providing 750-1200 lumens at a 3000K color temperature (80CRI), or optional 27/30/35/40/5000K FieldCCeT (90CRI). Versatile in applications, it is suitable for various settings such as hotel lobbies, corridors, shopping centers, schools, offices, and more!
Features:
• Replaces legacy 4” or 6” CFL or incandescent downlights
• Provides comfortable diffused light with no dark spots
• ToggleCCeT feature (select models) allows multiple CCT options to be toggled at the light switch
• FieldCCeT feature (select models) allows for multiple “set and forget” CCT options in each fixture
Certifications:
• UL Listed for Wet/Damp locations
• ENERGY STAR® Approved for superior energy efficiency
• Title 20 certified and supports compliance with Title 24 (JA8) (90CRI models)
Performance:
• Rated lifetime L70: 35,000
• 3000K CCT
• FieldCCeT: 27/30/35/40/5000K
• ToggleCCeT: 30/40/5000K
• CRI: >80; >90
Electrical:
• Input voltage: 120V
• Triac dimming
• Power Factor: >0.9
• THD: <20%
Thermal:
• -4°F to 104°F (-20°C to 40°C) operating temperature
Construction:
• White finish
• Frosted lens for diffuse lighting
Warranty:
• 5 year limited warranty. Additional warranty options available. Contact EiKO for details
