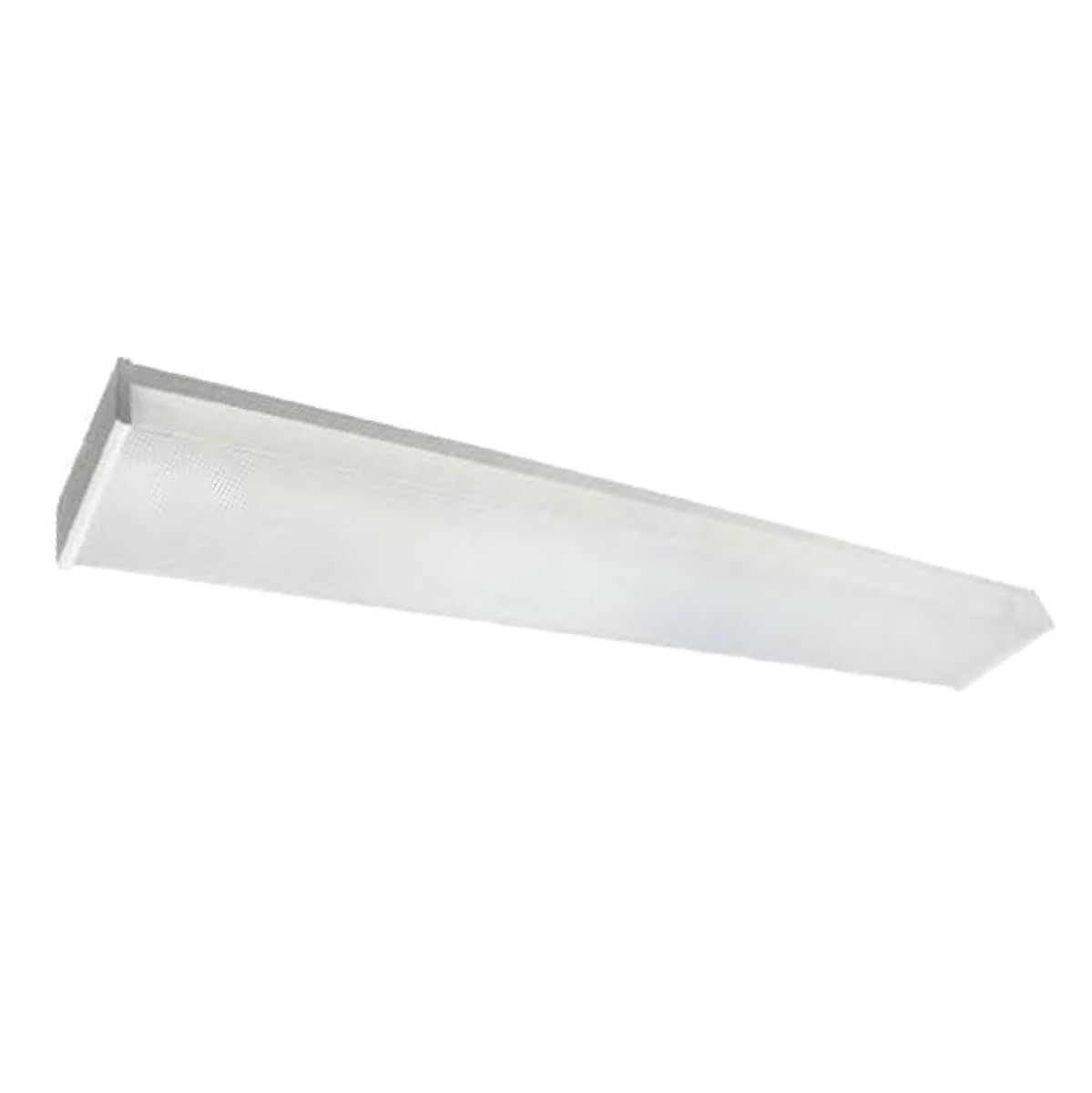

Eiko LW4/PS45/FCCT3/HD 4-Foot Color and Power Switchable LED Linear Wrap Fixture Dimmable
Eiko LW4/PS45/FCCT3/HD 4-Foot Color and Power Switchable LED Linear Wrap Fixture Dimmable
Specifications
Specifications
Part Number# | LW4/PS45/FCCT3/HD |
---|---|
Type of Area: | Industrial & Warehouse, Office & Small Retail, Schools, Stairwell, Hotels, Hospitals, Education, Hospitality |
Color Temp: | Selectable CCT |
Lamp Life: | 41,001 - 50,000 Hours |
Lumen Output: | 5,175 |
Wattage: | 45 Watt |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed, FCC Compliant |
CRI: | >80 |
Dimensions: | 48.03" x 6.93" x 2.60" |
Width: | 6.93" |
Length: | 48.03" |
Height: | 2.60" |
Dimmable: | Yes |
Product Warranty: | 5 year limited warranty |
Minimum Start Temperature: | -20 Deg F |
Voltage: | 120V-347V |
Manufacturer: | Eiko |
Technology: | LED - New Fixture |
Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Eiko's 4-foot LED Linear Wrap Light Fixture offers impressive flexibility with selectable wattage options of 45W, 36W, and 27W. Choose from different color temperatures for adaptable lighting solutions. The dimmable feature allows you to adjust the light output to your preference or needs. With the assurance of a 5-year limited warranty and a substantial rated life of 50,000 hours, this fixture is built to deliver long-lasting and reliable performance.
Features:
• Ideal for storage areas, utility rooms, stairwells, corridors, and similar applications
• Up to 115 lumens per watt
• High efficacy LED engine maximizes energy savings
• Full-length wrap-around U-shaped prismatic acrylic lens
• FieldCCeT feature allows for multiple “set and forget” CCT options
• Center Basket accessory available to hide driver and wires for a clean uniform look
• ETL Listed for dry locations
• DesignLights Consortium® Qualified
• Rated lifetime L70: >50,000 hours
• 4000K or FieldCCeT: 3500K/4000K/5000K selectable CCT
• CRI: >80
• Input voltage: 120-347V
• 0-10V dimming
• Power Factor: >0.9
• 12V Output: 45/36/27W - 250mA
• THD: <20%
• -22°F to 122°F (-30°C to 50°C) operating temperature
• Full-length wrap-around U-shaped prismatic acrylic lens
• Heavy gauge cold rolled steel housing
• 5-year limited warranty.
• Additional warranty options available. Contact EiKO for details.
Applications:
• Admin/Class/Conference/Meeting Rooms/Libraries
• Reception/Lobby
• Hallways
• Stairwells
• Production Areas
• Shipping/Receiving
• Warehouses
• Retail/Storefront
• Dr. Offices/Waiting/Patient Rooms
