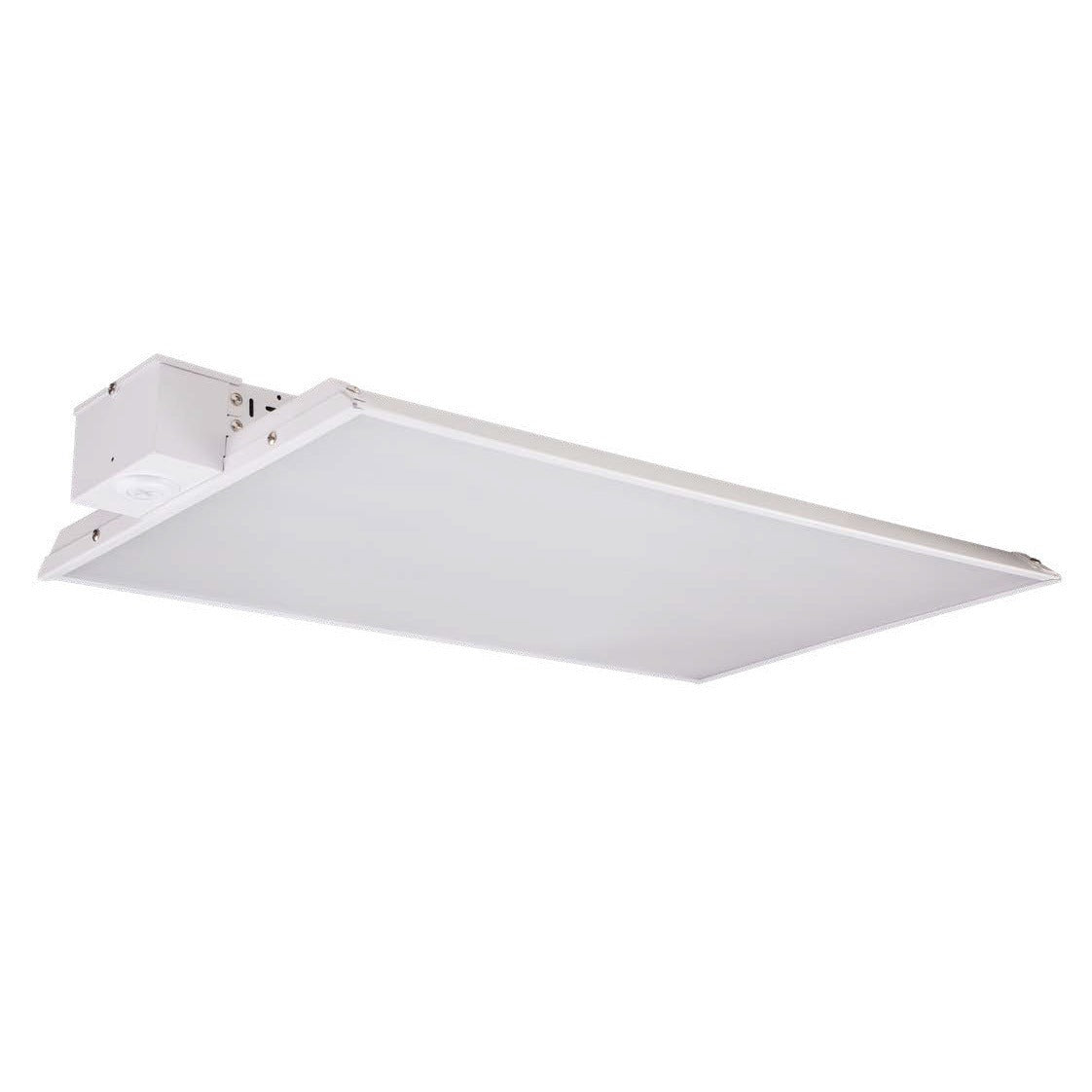

Eiko LHS1 Series Power and Color Selectable LED Linear High Bay Light Fixture Dimmable
Eiko LHS1 Series Power and Color Selectable LED Linear High Bay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LHS1 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 7,500 - 66,000 |
| Wattage: | 400 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Width: | 11" - 15" |
| Length: | 24" - 44.2" |
| Height: | 2.76" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Voltage: | 120V-347V |
| Weight Each: | 8.4 - 16.2 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Eiko's LHS1 LED Linear High Bay Light Fixture is a versatile and efficient lighting solution designed for high bay applications. Featuring power and color select technology, it simplifies SKU management and allows for easy field customization. With lumen output options ranging from 7,500 to 66,000 lumens, it accommodates mounting heights up to 60 feet, ensuring optimal illumination for large spaces. Offering up to 150 lumens per watt efficacy, a 100,000-hour lifespan, surge protection, and DLC Premium certification, this durable fixture is ideal for warehouses, manufacturing facilities, and other high-ceiling environments requiring reliable and customizable lighting.
Features:
• Power & Color Select Technology for simplified SKU management and field customization.
• Full spectrum input voltage coverage: 120-347V and 277-480V options
• Wide range of lumen packages (7,500 – 66,000 lumens) provide solutions for mounting heights up to 60FT.
• Diffused polycarbonate lens for reduced glare (beam angle 950).
• Heavy gauge steel housing and impact-resistant lens for robust
and reliable installation.
• Efficacy up to 150 LPW
• Lumen Maintenance 70% (L70) at > 100,000Hrs
• Surge Protection: 6kV included
• All products are DesignLights Consortium® (DLC) Premium listed.
• Standard 0-10V dimming with Dim-to-Off.
