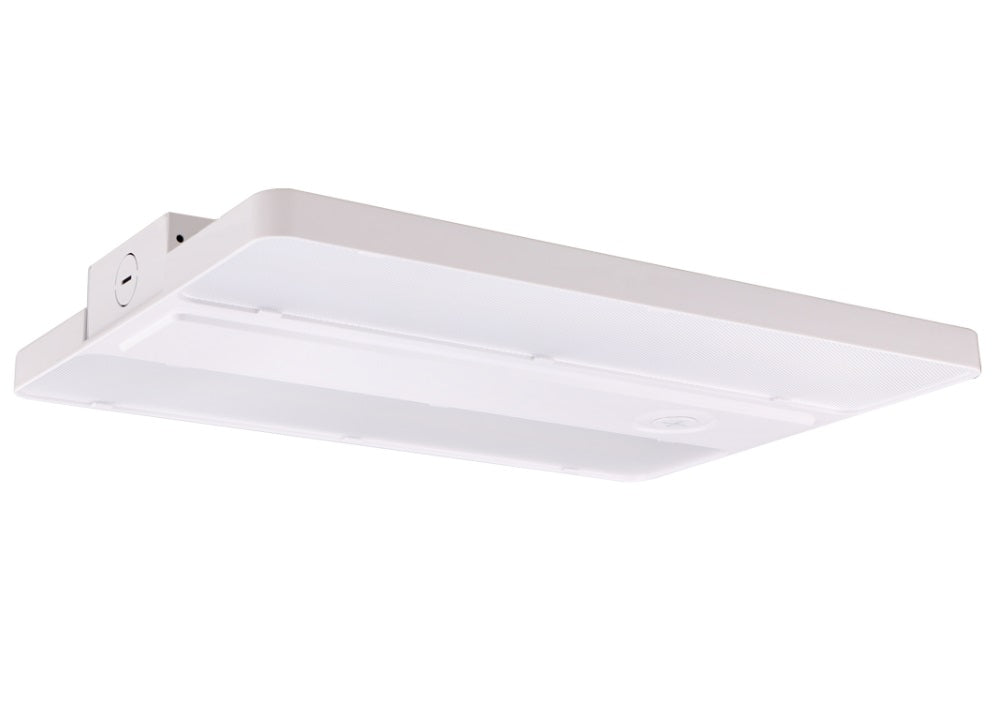

Eiko LHC1-PS150-U DLC Premium Wattage Selectable LED Linear Highbay Compact Fixture Dimmable Replaces 250W and 400W HID
Eiko LHC1-PS150-U DLC Premium Wattage Selectable LED Linear Highbay Compact Fixture Dimmable Replaces 250W and 400W HID
Specifications
Specifications
| Part Number# | LHC1-PS150 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 12,600 - 21,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, 400W HID Equivalent, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 14.19" x 11" x 2.87" |
| Width: | 11" |
| Length: | 14.19" |
| Height: | 2.87" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.4 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Eiko's LED Linear Highbay Compact Fixture is a high-performance lighting solution that replaces 250W and 400W HID fixtures. This fixture is designed for easy one-person installation with its lightweight and compact design. The PowerSet feature allows you to choose from power-selectable options of 150W, 130W, 110W, or 90W, providing versatility in meeting your lighting needs. It is available in either 4000K or 5000K color temperatures, offering flexibility in creating the desired lighting ambiance. The fixture has a CRI of over 80 and a beam angle of 90°. With a rated lifetime of 50,000 hours, the fixture ensures long-lasting performance.
Features:
• UL Certified for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location rated
• High efficacy, up to 140 lm/W
• PowerSet: power-selectable 150/130/110/90W
• Available in 4000K or 5000K CCT
• CRI: >80
• Beam angle: 90°
• Rated lifetime: 50,000 hours
• Input voltage: 120-277V
• 0-10V dimming, dim-to-off
• Surge protection: 6kV
• Power factor: >0.9
• THD: ≤20%
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor
• White powder-coated, diecast aluminum construction
• Polycarbonate lens
• 5 Year limited warranty is available online.
Applications:
• Warehouses
• Manufacturing Plants
• Distribution Centers
• Grocery Stores
• Gymnasiums
• Indoor Recreational Facilities
• Cold Storage
• Big Box Retail
• Service Repair Centers
