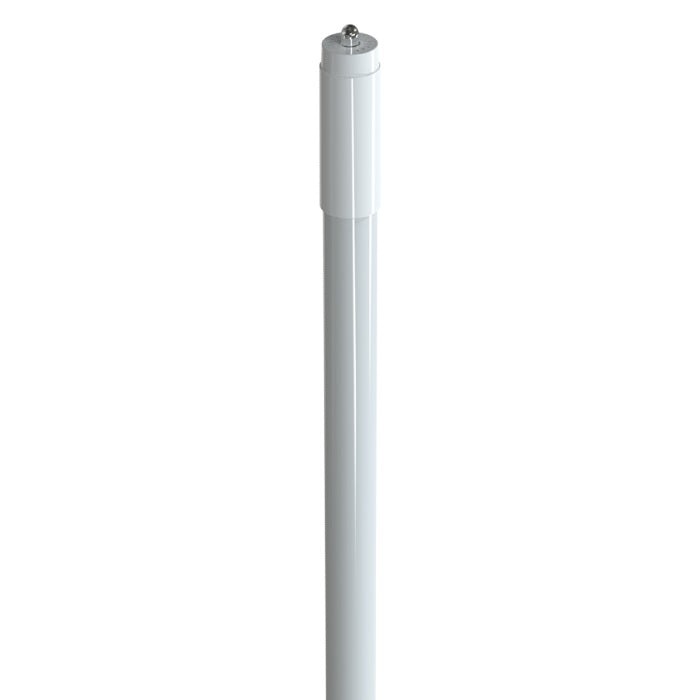

Eiko LED24WT8/96/840-FA8-G9D DLC Listed 24-Watt 8FT FA8 Single-Pin Double Ended T8 LED Tube Lamp Ballast Bypass Replaces 59W Fluorescent
Eiko LED24WT8/96/840-FA8-G9D DLC Listed 24-Watt 8FT FA8 Single-Pin Double Ended T8 LED Tube Lamp Ballast Bypass Replaces 59W Fluorescent
Specifications
Specifications
| Part Number# | LED24WT8/96/840-FA8-G9D |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Large Retail & Open Areas, Office & Small Retail, Schools, Stairwell, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,500 |
| Wattage: | 24 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, DLC Approved, NSF, ROHS |
| CRI: | >80 |
| Dimensions: | 96" x 1.10" |
| Width: | 1.10" |
| Length: | 96" |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Eiko |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Eiko's Double Ended T8 LED Glass Bypass/Line Voltage Linear Tube Lamp with an 8FT length and 24W power emits a bright 3500 lumens at 4000K with an 80CRI. This solid-state LED lamp is designed as a direct replacement for high-output 8-foot T8 and T12 fluorescent lamps, offering the same double-ended single-contact base. Experience a hassle-free installation by bypassing the ballast and connecting the line voltage to the single-pin sockets. The frosted lens ensures a uniform and diffuse appearance, while the integral 120-277V drivers make installation a breeze. With no ballast or external driver required, this high-output lamp delivers instant-on functionality and maintains the original UL compliance of your existing fixture. Please note that it does not operate on emergency backup systems. Upgrade your lighting solution today with this efficient and reliable LED linear tube lamp.
Features:
• Solid state replacement for high output 8’ T8 and T12 fluorescent lamps
• Direct replacement of single-pin LED slimline with HO-equivalent lumen output
• Double-ended single contact base – same as T8 and T12 lamps
• Simple installation; bypass ballast, connect line voltage to single-pin sockets
• Frosted lens for uniform diffuse appearance
• No ballast or external driver required
• High Output: 3,500/5,500 lumens; 140/128lpw
• Instant-On with no warm-up like fluorescents
• Integral 120~277V drivers provide easy installation
• Existing fixture maintains original UL compliance per UL1598C listing
• Does not operate on emergency backup
Warranty:
• 5-year limited warranty. Additional warranty options available. Contact EiKO for details
Applications:
• Admin/Class/Conference/Meeting Rooms/Libraries
• Reception/Lobby
• Restrooms
• Hallways
• Stairwells
• Dining/Cafeteria
• Cold Storage
• Multi-Residential (Dorms/Apartments)
• Dr. Offices/Waiting/Patient Rooms
• Gyms & Athletic Facilities
• Production Areas
• Shipping/Receiving
• Warehouses
• Exterior Perimeter
• Parking Garage
• Parking Lot
• Pathway
• Athletic Fields
• Retail/Storefront
