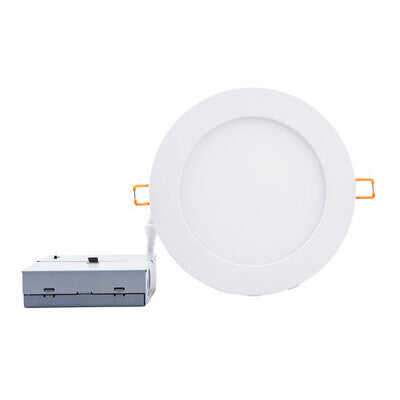

Eiko DWR Series Color Selectable Slim Downlight Wafer Remote with Triac Dimming
Eiko DWR Series Color Selectable Slim Downlight Wafer Remote with Triac Dimming
Specifications
Specifications
| Part Number# | DWR |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Hotels, Commercial Offices, Hospitality, Retail, Banking |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 800 - 1,200 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, Energy Star, ETL Listed, ROHS, Title 24 Compliant |
| CRI: | >90 |
| Dimensions: | 4" - 6" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Energy Star Rated Slim Downlight Wafer Remote with Triac Dimming is easy-to-install and cost-efficient modern lighting solution. Available in 4" and 6" and delivers 800-1200 lumens at 2700/3000/3500/4000K selectable CCT (90CRI). Suitable for wide applications such as Healthcare, Hospitality, Property Management, Office, and more!
Features:
• FieldCCeT feature allows for multiple “set and forget” CCT options in each fixture
Certifications:
• ETL Listed
• Wet Location Rated
• ENERGY STAR® Approved for superior energy efficiency
• 90 CRI models: Supports compliance with Title 24 (JA8)
Performance:
• Rated lifetime:
L70: >50,000 hours
• 800 lm @ 13W
• 1,200 lm @16W
• 1,600 lm @ 20W
• 3000K CCT
• FieldCCeT: 27/30/35/4000K CCT
• CRI: >80; >90
Electrical:
• Input voltage: 120V
• Triac dimming to 10%
• Power Factor: >0.9
• THD: <20%
Thermal:
• -4°F to 104°F (-20°C to 40°C) operating temperature
Construction:
• Powder coated, die-cast aluminum housing
• Frosted lens for diffuse lighting
• IC Rated
Warranty:
• 5 year limited warranty. Additional warranty options available. Contact EiKO for details
