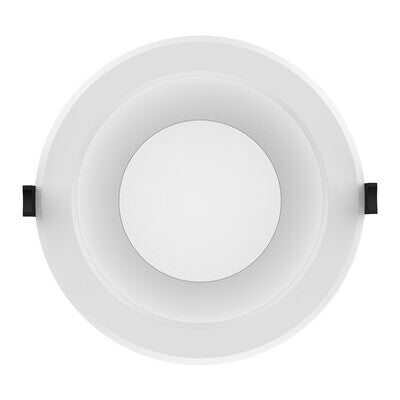

EIKO CD4/PS12/FCCT/UD Energy Star Rated Wattage and Color Selectable 4-Inch LED Commercial Downlight Dimmable
EIKO CD4/PS12/FCCT/UD Energy Star Rated Wattage and Color Selectable 4-Inch LED Commercial Downlight Dimmable
Specifications
Specifications
| Part Number# | CD4/PS12/FCCT/UD |
|---|---|
| Type of Area: | Home & Architectural, Large Retail & Open Areas, Office & Small Retail, Hotels, Hospitals, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 540 - 1,140 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, Energy Star, ETL Listed, ROHS |
| CRI: | >80 |
| Dimensions: | 4" (MOL) |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The EIKO CD4/PS12/FCCT/UD is an Energy Star-rated, 4-inch LED commercial downlight with selectable wattage (12W/8W/6W) and color temperature. It delivers 540-1,140 lumens at 95 lumens per watt with an 80 CRI, operating on 120-277V. It is designed for easy installation with spring-loaded heavy-duty brackets and provides comfortable, diffused light. With a 50,000-hour lifespan and a 5-year limited warranty.
Features:
• Provides comfortable diffused light
• 0-10V dimming
• 85° beam angle
• PowerSet feature allows for multiple “set and forget” lumen stops
• FieldCCeT feature allows for multiple “set and forget” CCT options
• Suitable for new construction or remodel applications
• Flexible steel conduit with 1/2” KO (3/8” Trade Size) snap-in connector
• Easy Installation due to spring-loaded heavy-duty brackets that keep the downlight in place
• Multiple sizes to fit various applications (4”, 6”, 8” and 10” models)
• Deep recessed light source for lower glare
• ETL Listed for Wet Locations
• Type IC for insulation contact
• Rated lifetime: L70: >50,000 hours
• PowerSet: 4”: 12/8/6W; 6”: 33/26/20; 6”: 16/12/8W; 8”: 22/16/12W; 10”: 33/26/22W
• FieldCCeT: 30/35/4000K CCT; 30/40/5000K CCT
• CRI: >80
• -4°F to 104°F (-20°C to 40°C); Insulation Contact -4°F to 77°F (-20°C to 25°C)
• Deep recessed light source for lower glare
• Powder-coated aluminum reflector and trim
• 5-Year limited warranty
Applications:
• Reception/Lobby
• Retail/Storefront
• Dr. Offices/Waiting/Patient Rooms
• Admin/Class/Conference/Meeting Rooms/Library
• Multi-Residential (Dorms/Apartments)
• Gyms & Athletic Facilities
• Warehouses
• Shipping/Receiving
