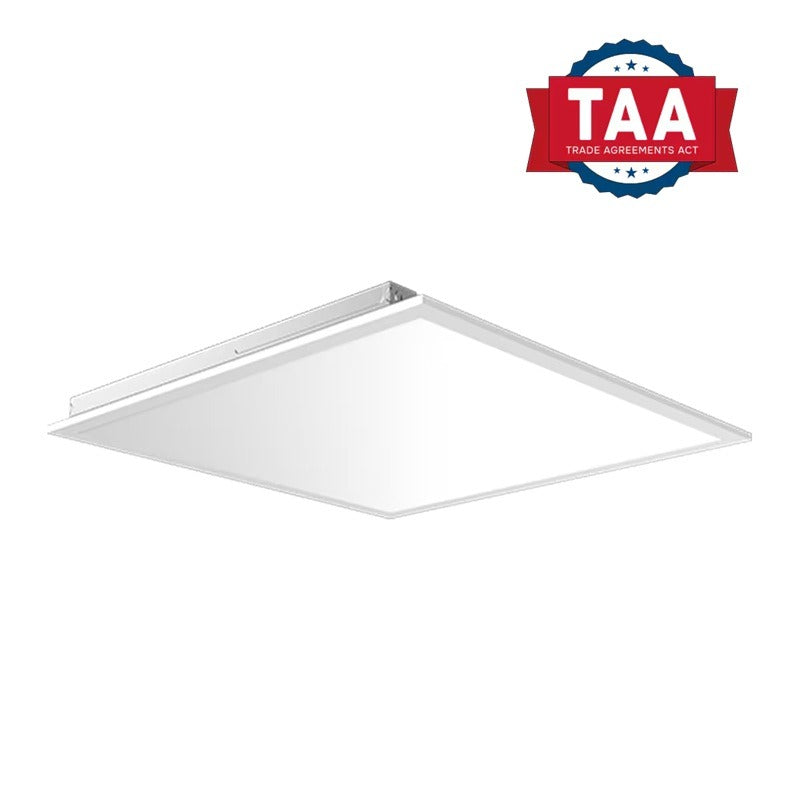

Eiko BP2-22-PS40P-8FCCT-UDIM Power and Color Selectable LED Back-Lit Low-Profile 2x2 Panel Light Fixture Dimmable
Eiko BP2-22-PS40P-8FCCT-UDIM Power and Color Selectable LED Back-Lit Low-Profile 2x2 Panel Light Fixture Dimmable
Specifications
Specifications
| Part Number# | BP2-22-PS40P-8FCCT-UDIM |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hotels, Commercial Offices, Education, Hospitality, Retail, Banking, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,500 - 5,000 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 23.7" x 23.7" x 1.41" |
| Width: | 23.7" |
| Length: | 23.7" |
| Height: | 1.41" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.1 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
Eiko's 2x2 Panel Light fixture is designed for efficient and versatile lighting in commercial spaces. Its low-profile, lightweight construction fits easily into shallow plenum spaces, while the back-lit design and high-quality PMMA lens ensure even, non-yellowing light distribution. With selectable wattage (20W/30W/40W) and CCT options (3500K/4000K/5000K), it adapts to a variety of lighting needs and environments. Certified for safety and performance, this dimmable fixture offers high efficacy up to 125 lm/W, long life (100,000 hours), and is backed by a 5-year limited warranty.
Features:
• Low-profile design is ideal for shallow plenum spaces
• Backlit design provides direct light and does not require a light guide plate
• The use of a high-quality, non-yellowing PMMA diffuse lens ensures optimal light uniformity
• Lightweight design makes it easier and faster to install
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture
• 5-Year limited warranty
Certifications:
• UL listed for US & Canada
• TAA Compliant
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IC Rated for insulation contact
• Damp Location rated
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
