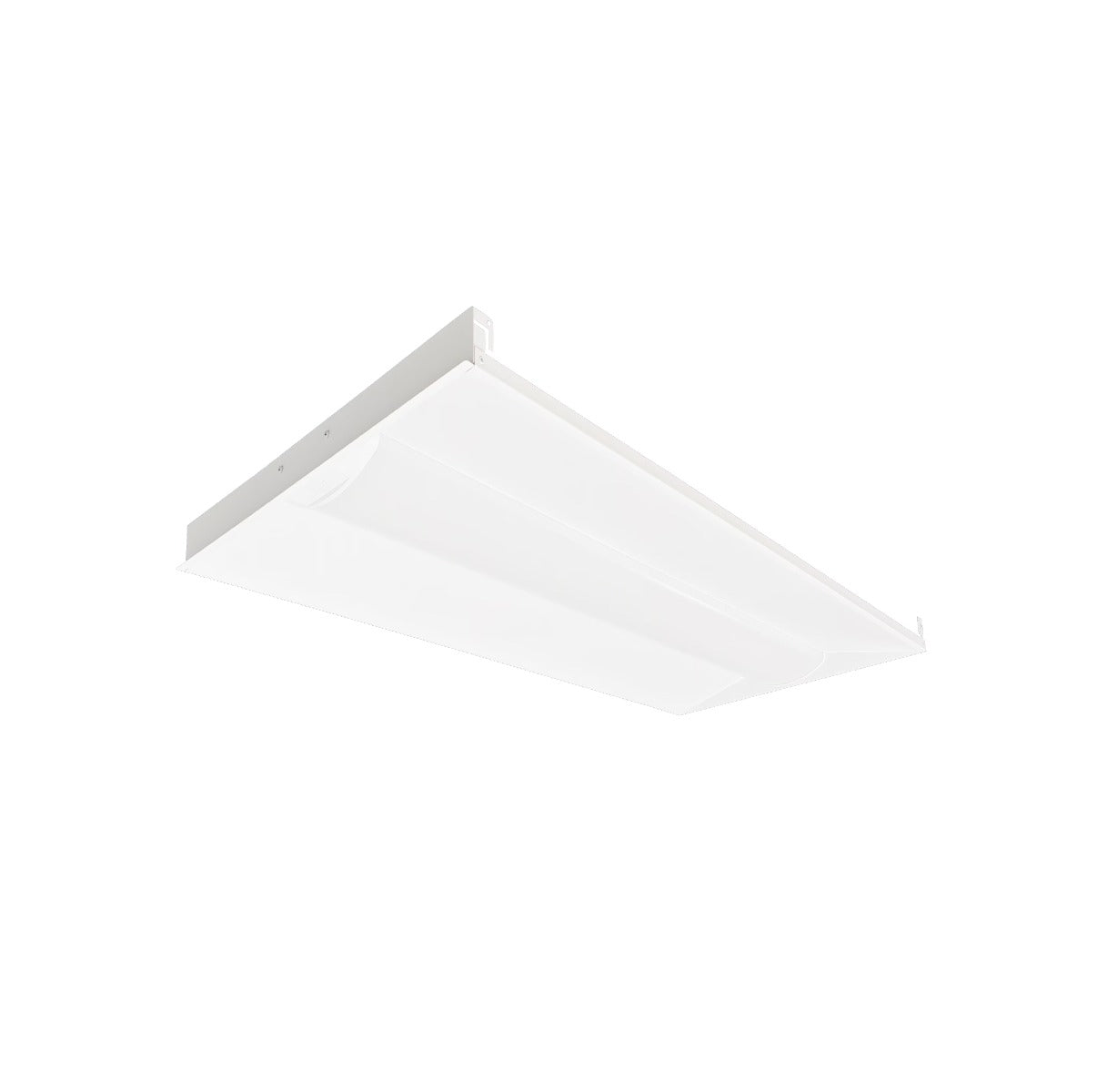

EiKO 13796 VL1 DLC Listed 2x4 LED Volumetric Troffer PowerSet 45/35/26W FieldCCT 3500/4000/5000K 120-347V 0-10V Dimming
EiKO 13796 VL1 DLC Listed 2x4 LED Volumetric Troffer PowerSet 45/35/26W FieldCCT 3500/4000/5000K 120-347V 0-10V Dimming
Specifications
Specifications
| Part Number# | VL1-24PS45-FCCT-H |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Hospitals, Commercial Offices, Education, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 3,640 - 6,300 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 47.8" x 2.1" x 23.7" |
| Width: | 2.1" |
| Length: | 47.8" |
| Height: | 23.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V-347V |
| Weight Each: | 11.4 lbs. |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
EiKO's VL1 Series architectural recessed luminaire is a versatile lighting solution designed for modern spaces, featuring a sleek flat lens made of high-quality, non-yellowing PMMA acrylic for optimal light uniformity. Its Controls Ready design simplifies the integration of both Standalone (Sept ‘23) and Networked Lighting Controls with a convenient snap-in receptacle. Available in multiple sizes—1’x4’, 2’x2’, and 2’x4’—this fixture supports recessed, suspended, and surface mounting. It includes PowerSet technology for adjustable lumen output and FieldCCeT for customizable color temperatures, making it ideal for dynamic and efficient lighting applications.
Features:
HIGHLIGHTS
• Architectural recessed luminaire featuring Controls Ready
• Controls Ready makes adding controls quick and easy. Includes snap-in receptacle for Standalone (Sept ‘23) and Networked Lighting Controls
• Flat modern lens featuring high-quality, non-yellowing PMMA acrylic lens ensures optimal light uniformity
• Multiple mounting options: recessed, suspended, surface mount
• 2’x4’
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provides multiple color temperature settings in one fixture
CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• IC Rated for insulation contact
• Damp Location rated
• DesignLights Consortium® Qualified - meets DLC requirements for efficacy and lumen maintenance
PERFORMANCE
• High efficacy, up to 140 lm/W
• Available in PowerSet models: power-selectable 35/30/22W, 45/35/26W, 90/75/65W
• Available in FieldCCeT models: fieldselectable CCT 35/40/5000K
• CRI: >80
• Estimated L70: 100,000 Hours
ELECTRICAL
• Input voltage: 120-277V or 120-347V
• 0-10V dimming, dim-to-off
• 12VDC Aux, 100mA max
• Surge Protection: 2.5 kV
• Power Factor: >0.9
• THD: <20%
THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)
CONSTRUCTION
• White powder coated steel housing
• IK07 Rated non-yellowing PMMA light diffusing acrylic lens
WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.
APPLICATIONS
• Campus
• Classroom
• Hospital
• Office
• Retail
• Schools
