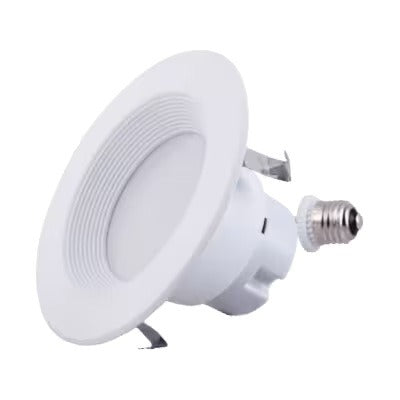

The Eiko RDR Series modern downlight is an ideal replacement for legacy 4” or 6” CFL or incandescent fixtures, delivering smooth, diffused illumination without dark spots. It features an integrated white trim and includes medium base (E26) socket adapters for quick, hassle-free installation. With its built-in PowerSet feature, users can select from multiple lumen outputs straight out of the box, while the FieldCCeT technology offers adjustable color temperature settings within a single, versatile fixture.

Features:
HIGHLIGHTS
• Replaces legacy 4” or 6” CFL or incandescent downlights
• Provides comfortable diffused light with no dark spots
•  Integrated white trim with medium base (E26) socket adapters (included) for direct replacement
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provides multiple color temperature settings in one fixture

CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
•  Title 20 certified and supports compliance with Title 24 (JA8) (90CRI models)

PERFORMANCE
• Available in fixed wattage models: 10W, 11W, 13W, 16W or 17W and PowerSet models:       power-selectable 13W/10W/8W or 17W/13W/10W
• Available in single CCT models: 3000K or FieldCCeT models: field-selectable CCT 27/30/35/40/5000K
• CRI: >80; >90
• Estimated lifetime L70: >35,000

ELECTRICAL
• Input voltage: 120V
• Triac dimming
• Power Factor: >0.9
• THD: <20% THERMAL
• -4°F to 104°F (-20°C to 40°C) ambient operating temperature

CONSTRUCTION
• White finish
• Frosted lens for diffuse lighting

WARRANTY
•  5-Year limited warranty available online. Contact your EiKO sales rep for additional details.

APPLICATIONS
•  Multi-Residential (Dorms/Apartments)
• Library
• Meeting rooms
• Classroom
• Office
• Reception/Lobby
• Restrooms
• Retail
• Dr. Offices/Waiting/Patient Rooms
• Library
• Meeting rooms
• Dining/Cafeteria
• Airports
• Automotive Dealerships
• Hallways
• Stairwells
