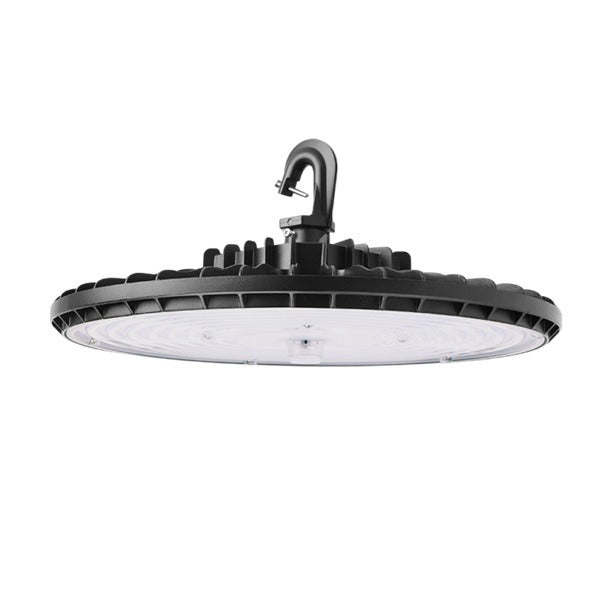

Dauer DHBG8 Series LED Circular High Bay Light – Dimmable, Adjustable Power & Color Temp
Dauer DHBG8 Series LED Circular High Bay Light – Dimmable, Adjustable Power & Color Temp
Specifications
Specifications
| Part Number# | DHBG8 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lumen Output: | 6,500 - 36,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | 70 |
| Dimensions: | 10.70" x 7.50" |
| Length: | 10.70" |
| Height: | 7.50" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.68 - 6.53 lbs |
| Manufacturer: | Dauer |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Dauer DHBG8 Series Circular High Bay Light Fixture provides powerful illumination with tunable wattage and color options. Delivering 14,500 to 35,000 lumens and a 70 CRI, it ensures bright, efficient, and accurate lighting. This dimmable LED high bay supports 120-277V input voltage for versatile installation. Backed by a 5-year limited warranty, it is DLC Premium Listed for reliability and long-term performance.
Features:
• Rugged die-cast aluminum housing with integral heat sink fins.
• Housing is completely sealed against moisture and environmental contaminants.
• The exterior is protected by a black rust-resistant polyester powder coat finish that provides superior resistance to weathering and corrosion.
• Light engines are available in standard 4000K and 5000K configurations with a 2 CCT control.
• A range of lumen options available from 14,500 to 35,000 Lumens, replacing up to 400W metal halide.
• Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
• Optional aluminum reflector available for different beam angles.
• Standard 120-277V input voltage.
• 0-10V dimming driver(s) as default for a dimming range of 100% to 10%.
• THD: ≤20%, Power Factor: ≥90%.
• Power & CCT adjustment controls standard.
• Optional center-mounted, plug & play multi-level motion sensor - ANT-6-4T.
• Optional emergency battery backup provides up to 90 minutes of operation during outages.
• Bluetooth networked controls that are DLC NLC qualified, utilizing a Bluetooth SIG mesh network operated with iOS and web, optional for all models.
• Pendant mount or hook mount options are available.
• Surface mounting with an optional Adjustable Surface Mounting Bracket allows precise aiming of the fixture to 0°, 30°, 60°, 90°, 120°, 150°, or 180°.
• 5 Year Limited Warranty.
• DesignLights Consortium® (DLC) Premium qualified.
• UL Wet Location Listed.
• Rated for ambient operating temperature -40˚F to 122˚F (-40˚C to 50˚C ).
