Specifications
Specifications
| Part Number# | WTA |
|---|---|
| Type of Area: | Parking Garage, Wall Mount & Building Exteriors |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 3,600 - 10,500 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 100W HID Equivalent, 150W HID Equivalent, 175W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥70 |
| Dimensions: | 7.3" x 4.2" x 9.1" (27W & 40W) | 10" x 5" x 11" (67W & 80W) |
| Width: | 4.2"/5" |
| Length: | 7.3"/10" |
| Height: | 9.1"/11" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.4 - 7.8 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

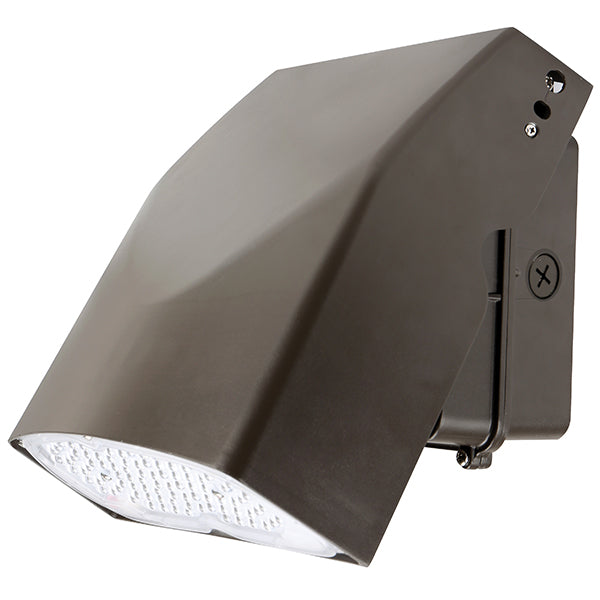

The Barron Lighting WTA Series is a DLC Premium Listed Adjustable LED Wallpack that is dimmable and can replace 100-320W HID fixtures. It is available in 27W, 40W, 67W, or 80W wattage options and offers a 70 CRI with color temperature options of 3000K, 4000K, or 5000K. The wallpack delivers between 3,600 to 10,500 lumens, making it ideal for various applications including retail entryways, schools, medical complexes, retail entrances, commercial buildings, and multifamily properties. The WTA series provides a reliable and long-lasting lighting solution with a rated life of 100,000 hours and a five-year warranty.
Construction:
• Die-cast aluminum housing in a powder-coated bronze finish with stainless steel hardware
• UV-stabilized polycarbonate lens
• Integral heat sink maximizes heat dissipation for longer LED life
• Hinged back box isolates drivers from LEDs and offers easy access to drivers
• Backbox includes three conduit entry points (one on top and two on the sides)
Optics/LEDs:
• Less than 1% uplight to minimize light pollution (pointing down)
• Type III distribution pointing down (3000K – Type II)
• 27W to 80W LED models replace 100W to 320W HID for up to 70% energy savings
• Up to 10,500 lumens for a variety of applications
• Efficacies up to 133 LPW maximize energy savings and utility rebates
• Available in 3000K, 4000K, and 5000K CCT
• L70 >100,000 hours
• CRI ≥70
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 1-10V Dimming driver
Testing & Compliance:
• cULus Listed for Wet Locations
• Tested to meet IP65 requirements
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) PREMIUM Qualified (verify QPL for specific models)
Installation:
• Housing can be adjusted from 0° to 90° for forward throw (10° increments)
• Backbox accommodates conduit entry on both sides and top
• Mounts to a standard 3-½” or 4” square electrical J-box
Options:
• Factory installed 120/277VAC button type photocontrol (PC)
Accessories:
• Bluetooth-enabled dimming occupancy sensor, PIR, black finish (LE-WTA-BL-KIT or LE-WTA-BL-12V-KIT)
• Button type universal photocontrol 120/277VAC (PCU)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
