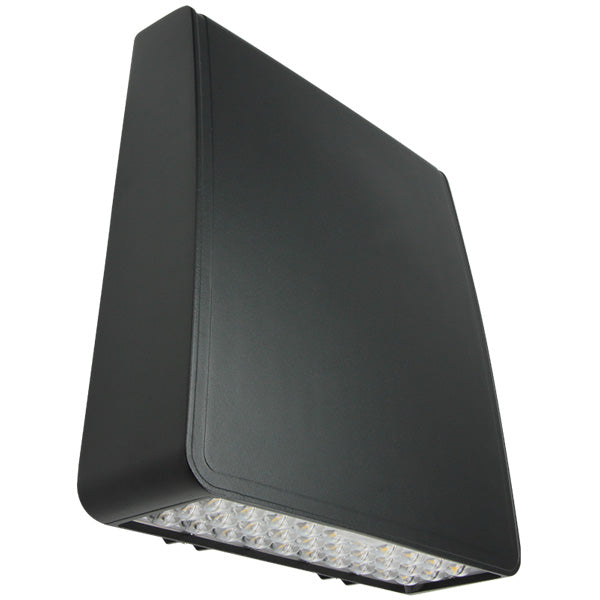

Barron Lighting WLZ2-3 DLC Listed 25 Watt LED Low-Profile Wallpack Light Fixture Dimmable 100W HID Equivalent
Barron Lighting WLZ2-3 DLC Listed 25 Watt LED Low-Profile Wallpack Light Fixture Dimmable 100W HID Equivalent
-
Specsheet:
Specifications
Specifications
| Part Number# | WLZ2-3 |
|---|---|
| Type of Area: | Home & Architectural, Wall Mount & Building Exteriors, Hotels |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3198 |
| Wattage: | 25 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 100W HID Equivalent, Dimmable, DLC Approved, UL Listed |
| CRI: | 70 |
| Dimensions: | 6.0" x 3.2" x 8.0" |
| Width: | 3.2" |
| Length: | 6.0" |
| Height: | 8.0" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.3 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
Barron Lighting WLZ2-3 DLC Listed 25 Watt LED Low-Profile Wallpack Light Fixture Dimmable 100W HID Equivalent
SPECIFICATIONS
Construction:
• Sleek die-cast aluminum housing with stainless steel hardware and powder coated black, bronze, silver or white finish
• UV-stabilized polycarbonate optical lens
• Integral heat sink for maximized heat dissipation
• Back box houses drivers away from LEDs and includes three ¾” hubs (WLZ1 and WLZ2 - two ¾" hubs)
Optics/LEDs:
• Zero uplight design to minimize light pollution
• 15 to 100 Watt models replace up to 400 Watt HID for up to 70% energy savings
• Efficacies up to 123 LPW at 5000K to maximize utility rebates
• Type III and Type IV distributions for optimal light distribution (WLZ1 - Type III only)
• Available in 3000K, 3500K, 4000K and 5000K CCT
• L70 of 50,000 hours at 40°C
• CRI of ≥70
Electrical:
• Class 2 power supply, 120-277VAC, 50/60Hz
• 347/480VAC Dedicated driver option for WLZ4, WLZ7 and WLZ10
• 0-10V Dimming driver (120-277VAC only)
• Power supply rated Class A EMI rating
Installation:
• Housing hinges to back box and is secured with set screws
• Back box is complete with three ¾” hubs and internal bubble level for easy installation (WLZ1 and WLZ2 - two ¾” hubs)
• Mounts to a standard 3-1/2” or 4” square electrical J-box
• Suitable for downlight installation only
Options:
• Battery Backup
• Integral battery backup (BB) provides over 700 lumens and 90 minutes of runtime for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F). Not available on WLZ1
• Integral Battery Backup with Internal Heater (BB-IH) provides over 700 lumens and 90 minutes of runtime for path of egress in Cold Locations down to -20°C. Not available on WLZ1 or WLZ2.
• Factory installed dual driver options for WLZ4 and WLZ10 (WLZ7 is standard with two drivers)
• Factory installed 120/277VAC button type photocontrol option (PC)
• Factory installed 10kVA surge protection options (SP or SPH) Accessories (Field Installed)
• 120/277VAC Button type universal photocontrol options accessory (PCU)
• Dimming occupancy sensor programmable, Wattstopper FSP221 available in multiple finishes (TL-SCES-L2)
• Remote control for occupancy sensor. Optional (TL-FSIR100)
Testing & Compliance:
• cULus Listed for Wet Locations
• DesignLights Consortium® (DLC) Qualified (verify QPL for specific models)
• International Dark Sky friendly approved product. (IDA) 3000K only
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
Warranty:
• Five year warranty (terms and conditions apply)
