Barron Lighting WLZ LED Zero Uplight LED Wallpack Wattage & CCT Selectable
Barron Lighting WLZ LED Zero Uplight LED Wallpack Wattage & CCT Selectable
-
Specsheet:
Specifications
Specifications
| Part Number# | WLZ |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors, Hotels, Parking Garage, Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,340 - 19,120 |
| Wattage: | 25 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed |
| CRI: | 80 |
| Width: | 6.5" - 12.0" |
| Height: | 7.1" - 13.0" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.3 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

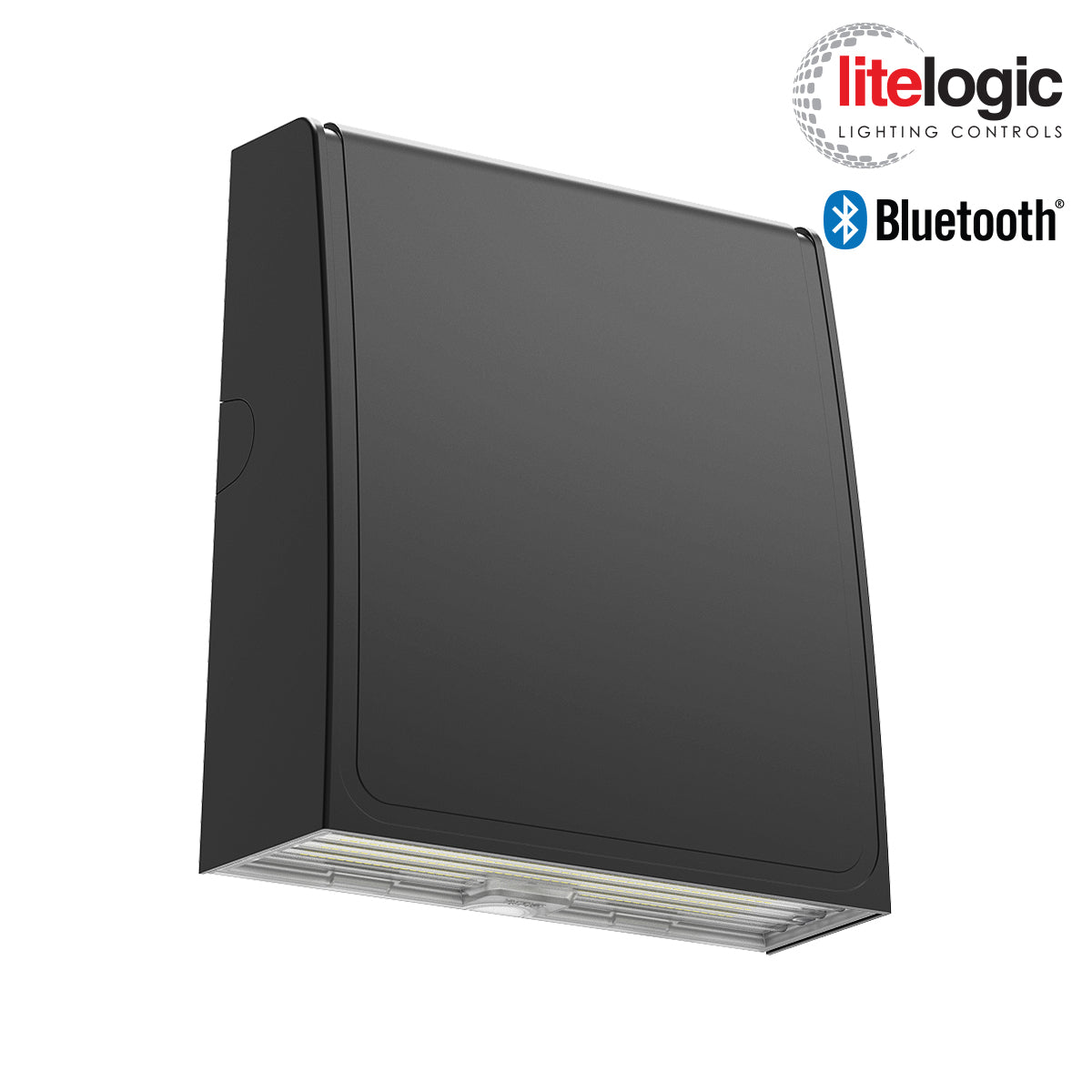

The Barron Lighting WLZ Wallpack features a low-profile design with zero uplight for controlled outdoor lighting. It offers field-switchable wattage and color temperature options between 3000K, 4000K, and 5000K. Available in multiple housing sizes, it delivers lumen packages from 1,340 to 19,120 lumens. Built with a die-cast aluminum housing and polycarbonate lens, it supports 0-10V dimming and includes interchangeable Type II, III, and IV lenses.
SPECIFICATIONS
Construction:
• Sleek die-cast aluminum housing with stainless steel hardware and powder coated black, bronze, gray aluminum or white finish
• UV-stabilized polycarbonate optical lens; Type III lens comes installed, Type II and Type IV lenses are included in the box
• Integral heat sink for maximized heat dissipation
• Backbox ensures simple installation and includes four ½” hubs
• Optional 3.5mm AUX receptacle for easy plug and play sensor installation
Optics/LEDs:
• Zero uplight design to minimize light pollution
• Efficacies up to 172 LPW
• Type II, Type III and Type IV distributions for optimal light distribution
• Available in 4 housing sizes and lumen packages:
• WLZ1-CP: Switchable between 10W-15W-18W (1,340-2,500 lumens)
• WLZ2-CP: Switchable between 25W-35W-45W (3,460-6,870 lumens)
• WLZ3-CP: Switchable between 50W-65W-80W (7,720-12,970 lumens)
• WLZ4-CP: Switchable between 90W-110W-130W (12,960-19,120 lumens)
• Color switchable between 3000K, 4000K and 5000K CCT. Switch is located inside backbox
• L70 of 50,000 hours at 40°C (104 °F)
• CRI ≥80, 90 CRI option (90) available
Electrical:
• 120-277VAC, 50/60Hz
• 277-480VAC Dedicated driver option for WLZ2-CP, WLZ3-CP and WLZ4-CP
• 0-10V Dimming driver
Installation:
• Housing hinges to backbox and is secured with set screws
• Hinged back box is complete with four ½” hubs, internal bubble level for easy installation and optional integral AUX sensor receptacle
• Mounts to a standard 3½” or 4” square electrical J-box
• Tool free lens installation to easily change distribution
• Suitable for downlight installation only
