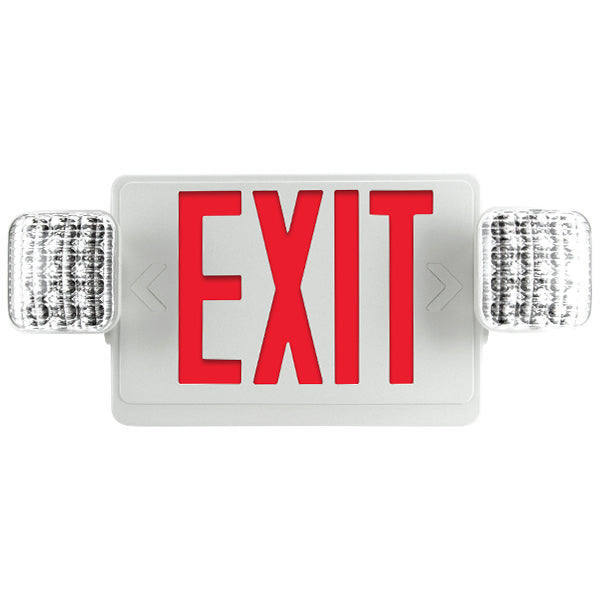

Barron Lighting VLED-U-WH-EL90 1 Watt LED Double Head Lamp Universal Exit Sign Combo Unit with NiCad Battery
Barron Lighting VLED-U-WH-EL90 1 Watt LED Double Head Lamp Universal Exit Sign Combo Unit with NiCad Battery
Specifications
Specifications
| Part Number# | VLED-U-WH-EL90 |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Wattage: | 1 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimensions: | 12.00" x 2.00" x 8.00" |
| Width: | 2.00" |
| Length: | 12.00" | 25" Max |
| Height: | 8.00" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting VLED Series is a Universal Exit Sign Combo Unit featuring a 1-watt LED double-head lamp. It includes a NiCad battery for reliable backup power. This unit is designed for versatile installation and provides energy-efficient emergency lighting, suitable for various commercial and industrial applications. The white finish complements a wide range of interior environments.
Features:
• LED exit combo where each of the heads contains 8 long-lasting, efficient, ultra-bright white LEDs using 1.1W per head
• Remote capable option - up to one (1) MLED or two (2) MLED-LO remote lamp heads
• Universal style - includes 2 faceplates, a backplate, and mounting canopy
• Suitable for Damp Locations
• California Energy Commission (CEC) compliant
Specifications:
• Illumination: Constant, uniform illumination by long-life, high-intensity, red or green LEDs
• Housing: Rugged, injection-molded UL 94 5VA flame retardant, high-temperature thermoplastic housing
• Input: 120/277V Dual primary, 60Hz input
• Battery: Maintenance-free NiCad battery
• Run Time: UL listed 90 minute emergency run time, 24-hour recharge time
• Electrical: Low voltage disconnect eliminates deep discharge, brownout, short circuit, and overload protection
• Legend: Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons included for all configurations
• Mounting: Ceiling or wall mount
• Finishes: Black or White
• Options: Remote Capability (R) Guardian Self-test/Self-diagnostics (G2)
• Certifications: UL Listed for Damp Locations, California Energy Commission (CEC) compliant
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five-year prorated warranty on the battery. The warranty does not
cover physical damage, abuse, or uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and Conditions Apply)
