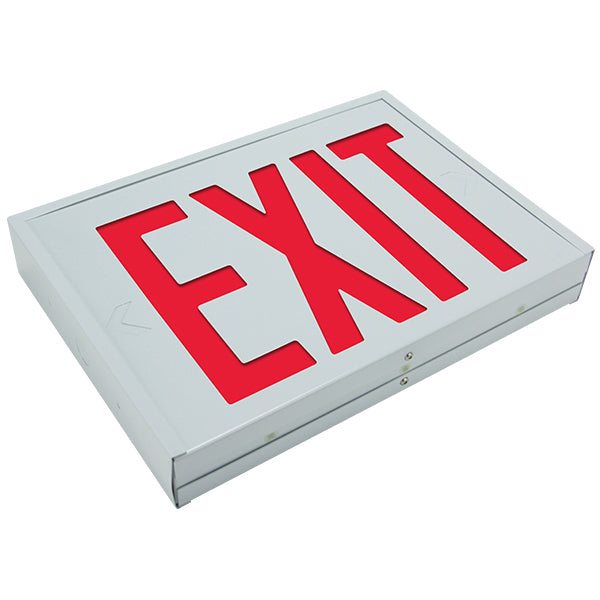

Barron Lighting VEX-8 Series New York City Approved Universal Steel LED Exit Sign
Barron Lighting VEX-8 Series New York City Approved Universal Steel LED Exit Sign
Specifications
Specifications
| Part Number# | VEX-8-U-S |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Lamp Life: | 100,000 Hours |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, NEC, NFPA, UL Listed |
| Dimensions: | 14.5" x 2.3" x 10.5" |
| Width: | 2.3" |
| Length: | 14.5" |
| Height: | 10.5" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting VEX-8 Series is a New York City Approved Universal Steel LED Exit Sign designed for commercial, institutional, or industrial applications. It is suitable for wet location areas, such as parking garages, breezeways, and other similar environments, ensuring reliable and durable emergency signage in various challenging conditions.
Features:
• Meets City of New York Emergency Code requirements
• Universal style - includes two faceplates, a backplate, and a mounting canopy
• Field-selectable directional chevrons included for all configurations
• Suitable for Damp Locations; NEMA 4X accessory available for Wet Locations (Available While Supplies Last)
• UL 924 Listed 90-minute emergency run time, 24-hour recharge time
Specification:
• Illumination: Long-life, high-intensity, red LEDs
• Housing: Enclosure constructed of 20 gauge welded steel
• Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free 6V NiMH battery
• Run Time: UL Listed 90-minute emergency run time, 24-hour recharge time
• Legend: Fully-illuminated 8” characters with 1” stroke, field-selectable directional chevrons
• Mounting: Universal knockout pattern on backplate, includes canopy for side or top mount
• Finishes: White
• Accessories: VEX-8-N4-KIT-LB - NEMA 4X Enclosure Kit
• Certifications: UL 924 Listed, meets or exceeds NEC requirements and NFPA 101, Suitable for Damp
• Locations. Meets City of New York Emergency Code requirements.
• Warranty: Three-year warranty with a separate three-year prorated warranty on the battery (Terms and Conditions Apply)
