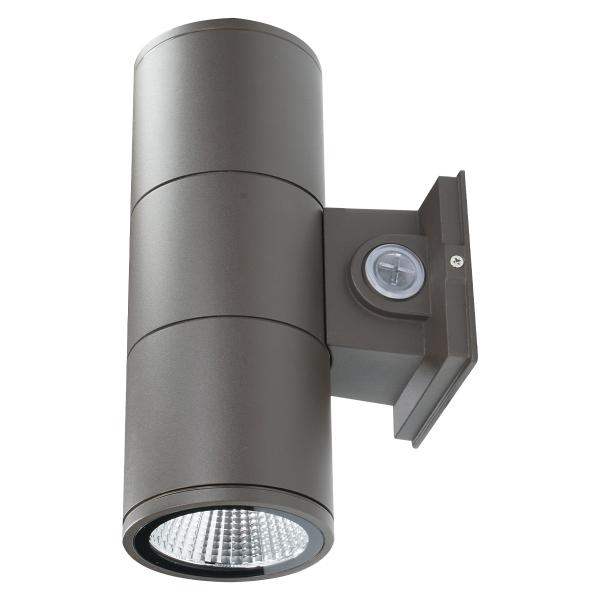

Barron Lighting UDC-20-VS-CP UDC Series 4-Inch Architectural LED Up/Down Cylinder Wallpack Dimmable
Barron Lighting UDC-20-VS-CP UDC Series 4-Inch Architectural LED Up/Down Cylinder Wallpack Dimmable
Specifications
Specifications
| Part Number# | UDC-20-VS-CP |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Schools, Stairwell, Wall Mount & Building Exteriors, Hotels, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 1,140 - 2,100 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥ 90 |
| Dimensions: | 4.17" x 11.02" |
| Width: | 4.17" |
| Height: | 11.02" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's UDC Series 4-inch Architectural LED Up/Down Cylinder Wallpack is designed for maximum versatility and customization. It features field-switchable downlighting and uplighting capabilities, adjustable CCT (3000K-4000K-5000K), and power (12W-16W-20W). With energy-efficient LEDs providing up to 2,100 lumens and dual light sources for accent lighting, this fixture ensures a perfect balance of functionality and aesthetics. Ideal for both interior and exterior applications, it offers adjustable beam angles and excellent thermal performance, promising years of maintenance-free operation.
Features:
• 4” Diameter cylinder, die-cast aluminum housing with powder-coated finish
• Glass lenses and aluminum reflector on both ends
• Easily accessible switches in the back allow for field selection of:
• Up, down, or up and down light selection
• CCT selection
• Power selection
• Photocontrol (on/off)
• Field-switchable between 3000K, 4000K, and 5000K
• Field-switchable between 12W, 16W, and 20W providing up to 2,100 lumens (up & down, output is halved if up or down only is selected)
• Swappable reflectors for 25°, 40°, or 60° beam angle included in packaging (60° pre-installed)
• CRI ≥ 90
• L70 >100,000 hours
• L90 ≥ 88,000 hours
• 0-10V Dimming
• Mounts to a standard 3-½” or 4” square electrical J-box
• Housing mounts to backplate for ease of installation
• cULus Listed for Wet Locations
• IP65 Rated
