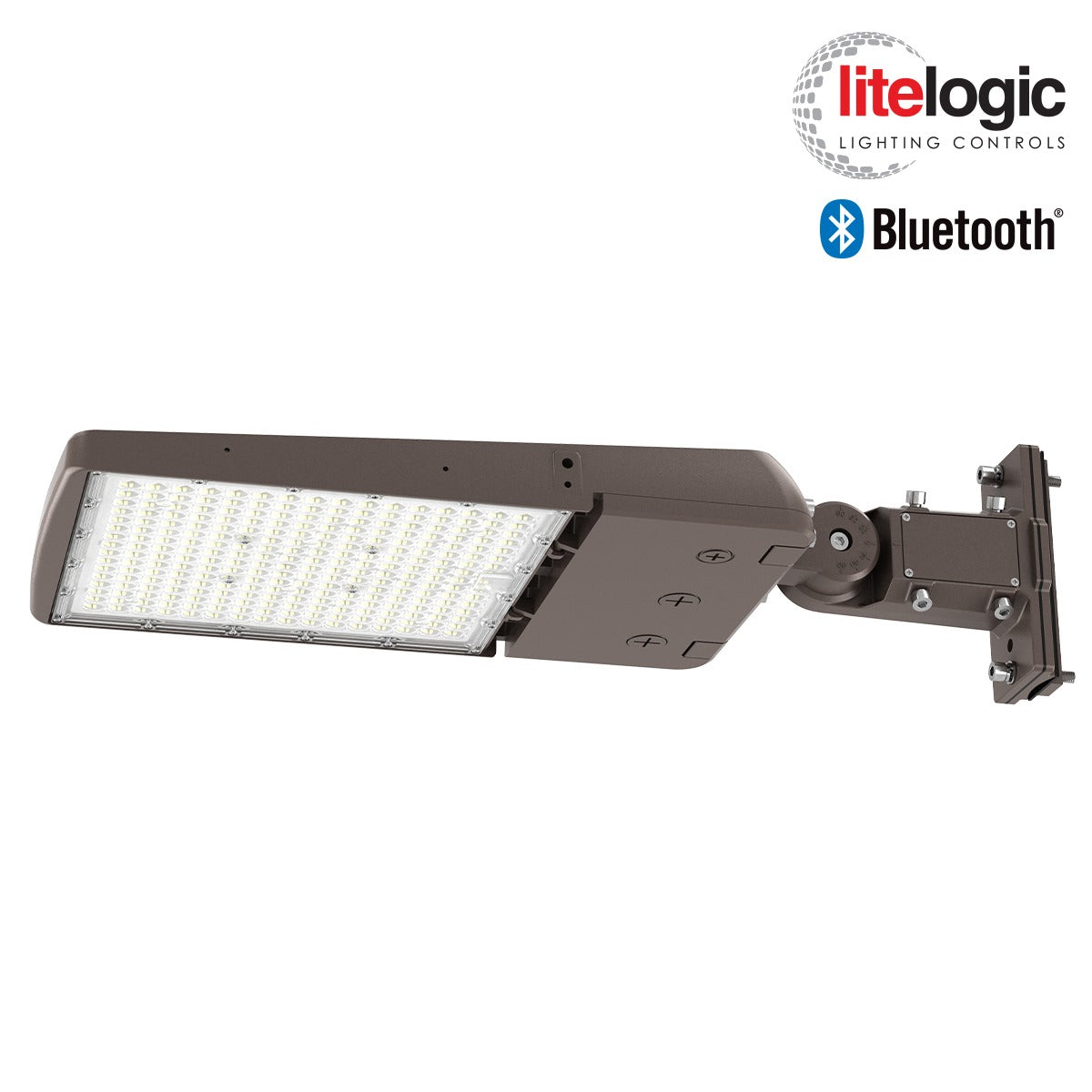

Barron Lighting SWOA Series Universal Switchable LED Area Light Dimmable
Barron Lighting SWOA Series Universal Switchable LED Area Light Dimmable
Specifications
Specifications
| Part Number# | SWOA |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Wall Mount & Building Exteriors, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 14,500 - 48,000 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed |
| CRI: | >80 |
| Width: | 10.6" - 14" |
| Length: | 18.3" - 22.2" |
| Height: | 2.4" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 10.6 - 14.4 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's SWOA Series is a powerful and flexible LED area light. It offers switchable lumen output, color temperature, and beam distribution. The fixture is built to reduce light pollution and adapt to many outdoor needs. With easy mounting options and added controls, it works well for parking lots, pathways, and building exteriors.
Features:
• Slim/sleek die-cast aluminum housing with stainless steel hardware and powder coat finish
• Integral heat sink fins maximize heat dissipation
• Hinged driver access door for ease of maintenance
• 100 to 300 Watts with field-switchable lumen packages from 14,500 to 48,000 lumens
• Designed with zero uplight to eliminate light pollution
• Efficacies up to 160 LPW maximize energy savings and utility rebates
• Field-switchable distribution between Type III, IV, and V to optimize light distribution
• Field-switchable CCT between 3000K, 4000K, and 5000K
• 0-10V Dimming driver
• cULus Listed for Wet Locations, tested to meet IP65 requirements
• DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)
• 3G Vibration-rated enclosure
• Five-Year Warranty (Terms and Conditions Apply)
• 10-Year Warranty available upon request
