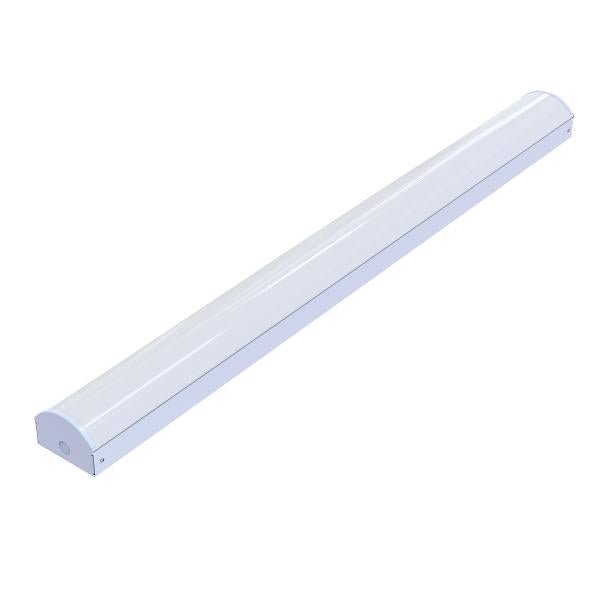

Barron Lighting SSF-LE Series Power and Color Selectable 4FT LED Linear Stairwell Fixture with Integral Bluetooth Controls
Barron Lighting SSF-LE Series Power and Color Selectable 4FT LED Linear Stairwell Fixture with Integral Bluetooth Controls
Specifications
Specifications
| Part Number# | SSF |
|---|---|
| Type of Area: | Schools, Stairwell, Hospitals, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 5,320 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed |
| CRI: | ≥80 |
| Dimensions: | 48.0" x 4.4" x 3.0” |
| Width: | 4.4" |
| Length: | 48.0" |
| Height: | 3.0” |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.2 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Barron Lighting's SSF-LE Series 4FT LED Linear Stairwell Fixture combines sleek design with robust construction. This fixture includes integral Bluetooth controls compatible with the LiteLogic app, allowing users to adjust the color temperature between 3000K and 4000K and the power output up to 40W, providing up to 5,300 lumens. The SSF-LE Series is equipped with a Bluetooth microwave sensor for 2 or 3-step-level dimming and optional daylight harvesting, along with the ability to manage grouping, scheduling, and zones through the app. Ideal for stairwell applications, this versatile fixture is also suitable for a variety of indoor environments such as schools, hospitals, and stores, offering energy efficiency, durability, and enhanced control.
Features:
• Includes integral Bluetooth® controls, compatible with the LiteLogic app
• Wattage tunable up to 40W (up to 5,320 lumens)
• Color tunable between 3000K and 4000K CCT
• Durable 4-3/8” width, 22-gauge steel enclosure in a white powder coated finish, IK08 impact tested, 4’ length
• Vandal-resistant Pin-In Torx hardware
• Flanged housing ends secure the lens in place
• Several knockouts across the bottom of the housing and the two ends
• All visible hardware in a white finish to match enclosure
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• Significant energy savings compared to traditional light sources with up to 130 LPW
• L70 >100,000 hours
• CRI ≥80
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V dimming driver, 1-100% flicker-free dimming
• 12V auxiliary output from the driver
• 4KV driver protection
• All units are provided with an integral bluetooth microwave sensor, centered behind the lens. Sensor allows for 2 or 3 step - level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via the LiteLogic app. See sensor details for default sensor settings.
• Sensor can easily be disabled for on/off fixture operation
• Integral battery Backup (BB option) offers 875 lumens and over 90 minutes of emergency-powered illumination for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• cETLus Listed for Damp Locations
• Operating temperatures: -20°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) Qualified (consult QPL for qualified models)
