ShineRetrofits Input:

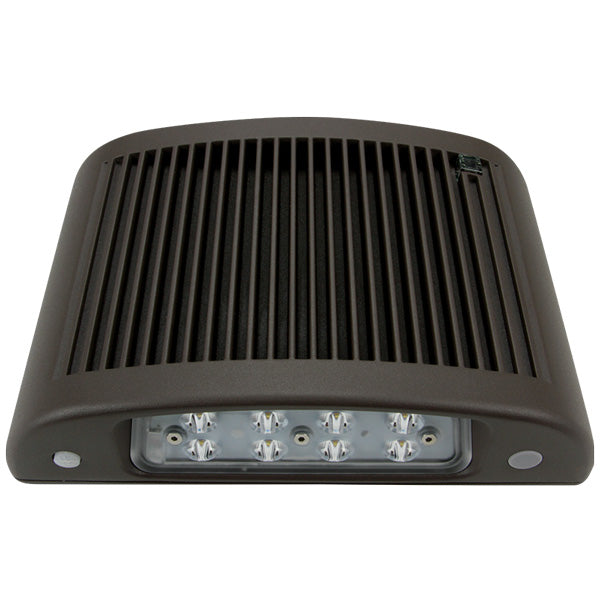

The Barron Lighting SLW Series is a 15-watt LED low-profile architectural wallpack fixture that emits 4000K light, equivalent to a 100W HID. It delivers 1,750 lumens with a 70 CRI. The fixture comes in a bronze, black, silver, or white finish. Its full gasket die-cast enclosure is UL Listed for Wet Locations, ensuring durability. Perfect for architectural outdoor wall lighting. It boasts a lifespan of 72,000 hours and is backed by a five-year warranty.

Construction:
• Architectural die-cast aluminum housing
• Snap-fit housing to the mounting plate for easy access and installation
• Universal pattern knockouts on the back for mounting to 3” and 4” J-box
• ½” Threaded conduit entry for top feed
• Available in Bronze, Black, Silver or White finish

Optics/ LEDs:
• 15 Watt high-power LED light engine delivers 1750 lumens (650 lumens in emergency mode for 60' on center spacing)
• Standard 4000K CCT, CRI ≥ 70, L70 > 72,000 hours
• LED array is protected by a high-impact, UV-resistant polycarbonate lens

Electrical:
• 120-277VAC, 60Hz driver
• EM option uses a long-life, maintenance-free, rechargeable high-temperature NiCad battery which includes an internal heater suitable for cold locations and draws an additional 5 Watts

Integral controls include:
• Standard unit: Passive infrared (PIR) motion sensor with up to 10' detection, operational from dusk to dawn. The unit will shut off after two minutes of inactivity. The light will activate in AC mode only when motion is detected
• No PIR sensor option (NS): switchable AC operation for use from dusk to dawn with included photocontrol or use of a normally open switch by disabling photocontrol

Installation:
• Ideal for mounting to any vertical surface by attaching to a 3” or 4” J-box
• Can be surface mounted using the ½” conduit entry point at the top of the housing

Options:
• Emergency (EM) battery backup is UL 924 Listed to provide a minimum of 90 minutes of operation during a loss of power, with a 24-hour maximum recharge time for the battery. Standard with self-test/ self-diagnostics as well as a heater for cold location operation to -25°C. AC power indicator and test switch are located on the bottom face of the unit
• No PIR sensor option (NS) is offered without a passive infrared (PIR) motion sensor, but with a photocontrol for use in dusk to dawn applications. Photocontrol can be disabled to be used as an always-on or switchable fixture

Testing & Compliance:
• cULus Listed for Wet Locations
• Emergency model UL 924 Listed, NFPA 70, NFPA 101
• Complies with Title 24 of the California Code of Regulations
• Operating temperatures: -25°C to 50°C (-13°F to 122°F)

Warranty:
Five-Year Warranty (Terms and Conditions Apply)
