Barron Lighting SLS-4-50-CP DLC Premium Listed 30/40/50 Watt 4Ft LED Linkable Strip Light Fixture Dimmable Switchable CCT and Power
Barron Lighting SLS-4-50-CP DLC Premium Listed 30/40/50 Watt 4Ft LED Linkable Strip Light Fixture Dimmable Switchable CCT and Power
Specifications
Specifications
| Part Number# | SLS-4-50-CP |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Education, Hospitality, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 30W (3900) | 40W (5200) | 50W (6500) |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium |
| CRI: | 80 |
| Dimensions: | 48” x 3” x 3.2” |
| Width: | 3” |
| Length: | 48” |
| Height: | 3.2” |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.9 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:

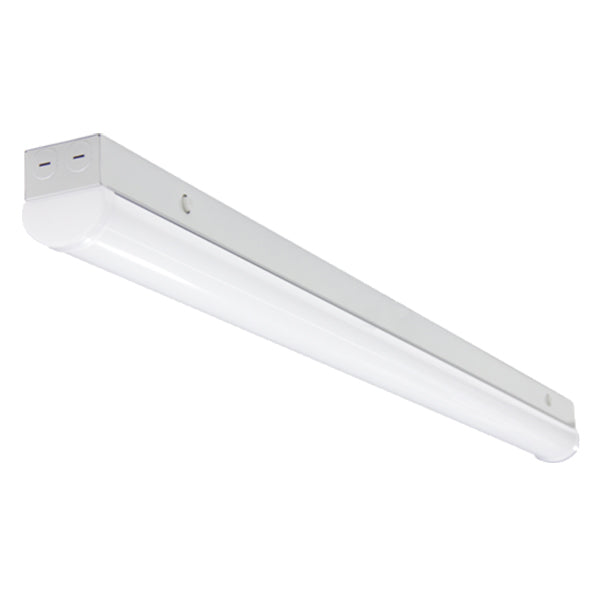

The Barron Lighting SLS Series is a DLC Premium Listed 4-foot LED linkable strip light fixture. It is dimmable and features switchable color temperature and wattage of 30W, 40W, or 50W, delivering 3,900 to 6,500 lumens with an 80 CRI. This fixture is perfect for indoor settings including schools, hospitals, and stores, and is ideal for both new construction and retrofits in surface or suspended mount applications. It is rated for 54,000 hours and comes with a five-year warranty.
Construction:
• Steel housing in a white finish
• Toolless direct access to the driver compartment by pressing the two buttons on each end
• Available in three lengths, several different lumen packages:
• 4’ Unit, Power Switchable (30W-40W-50W), 3900-5200-6500 lumens
• Two knockouts on both ends and several beneath the unit for ease of installation
Optics/LEDs:
• Polycarbonate lens and end caps that provide uniform illumination along the entire length of the luminaire with no visible LED pixelation, lens is IK08 impact-tested
• General 120° distribution
• Efficacies up to 130 LPW maximizes energy savings and utility rebates
• CCT switchable (3500K, 4000K, and 5000K)
• 4’ Unit offered in power switchable configuration (30W-40W-50W) offering up
• CRI of >80
• L70 >100,0000 hours
• L90 rated at 54,000 hours
Electrical:
• 100-277VAC, 50/60Hz
• 0-10V Dimming driver
Installation:
• Toolless direct access to the driver compartment by pressing the two buttons on each end
• Suspension or surface mount installation (suspension kit sold separately)
• Continuous row mounting (linkable adapter required) linkable up to 140’
• Several knockouts along the enclosure for flexibility in mounting
• Not suitable for installation in T-bar ceiling without field mounting modifications to be determined by the installer
Options:
• Integral battery backup (BB) provides 1400 lumens and 90 minutes of emergency run time for a path of egress (4’ and 8’ models only). Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
• Dimming occupancy sensor (Option: SC), PIR, with daylight harvesting capabilities, 120/277VAC, (integral)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Testing & Compliance:
• cULus Listed for Damp Locations
• DesignLights Consortium® (DLC) qualified product. Not all versions of this product may be DLC-qualified. Please check the DLC Qualified Products List at www.designlights.org/QPL to confirm which versions are qualified.
• IK08 Rated
• Operating temperatures: -20°C to 40°C (-4°F to 104°F)
