Barron Lighting RSL Series LED Steel Compact Emergency Lighting Unit
Barron Lighting RSL Series LED Steel Compact Emergency Lighting Unit
Specifications
Specifications
| Part Number# | RSL |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Wattage: | 90 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, CSA, Made In America Compliant, NEC, NFPA, UL Listed |
| Width: | 2" - 3" |
| Length: | 10" - 12" |
| Height: | 4" - 9" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

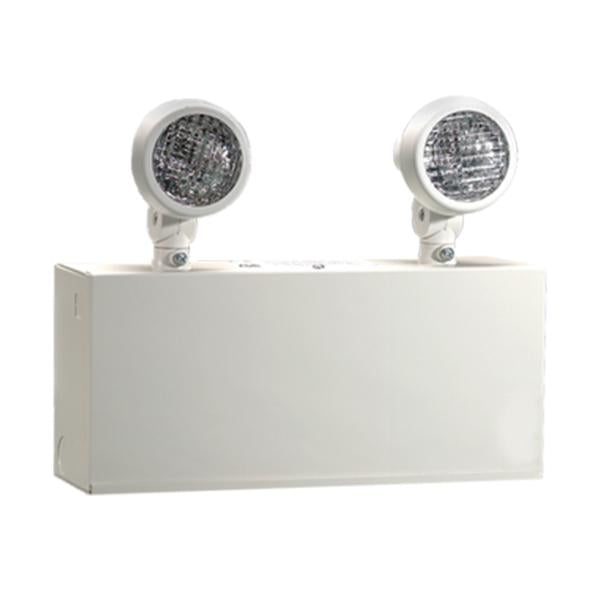

Barron Lighting's RSL Series LED Steel Compact Emergency Light combines LED performance and dependability within a compact, rugged 20-gauge steel enclosure. These corrosion-resistant units feature fully adjustable LED lamp heads and are designed for easy installation, with most models offering additional battery capacity for extended run times or powering remote lamps. The RSL Series is available in 6V or 12V with capacities up to 90 watts, and includes options for Guardian Self-test/Self-diagnostics, making it a versatile choice for emergency lighting needs. Meeting City of New York Emergency Code requirements and conforming to UL 924 standards, this unit is built to deliver reliable illumination in critical situations.
Features:
• PAR18 thermoplastic LED lamp heads
• Enclosure constructed of rugged 20 gauge steel
• Available in 6V or 12V with capacities up to 90 watts
• Knockouts for side-mounted heads
• Extended run time or remote capable
• Optional Guardian Self-test/Self-diagnostics (G2) available
• Buy American Act (BAA) compliant
• Compatible with MIST, RL1-WP and RSMR LED remote lamp heads
• Meets City of New York Emergency Code requirements
Specifications:
Illumination: Two top (standard) or side mounted, long-life, high intensity PAR18 5W or 7W LED lamp heads
Housing: Rugged 20 gauge steel with powder coated finish
Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free sealed lead calcium or NiCad battery available
Operating Temp: 10°C to 40°C (50°F to 104°F)
Run Time: CSA Listed 90 minute emergency run time, 24 hour recharge time
Electrical: Low voltage disconnect eliminates deep discharge, brownout, short circuit and voltage surge protection
Mounting: Shelf mount or universal mounting pattern with keyhole slots provided for wall mount
Finishes: Black or White
Options: G2 - Self-test/Self-diagnostics
Certifications: Conforms to UL 924 standards, Meets NFPA 101 Life Safety Code, NEC, OSHA. Meets City of New York Emergency Code requirements
Warranty: Any component that fails due to a manufacturing defect is guaranteed for three years with a separate three year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information and product registration instructions. (Terms and Conditions apply)
