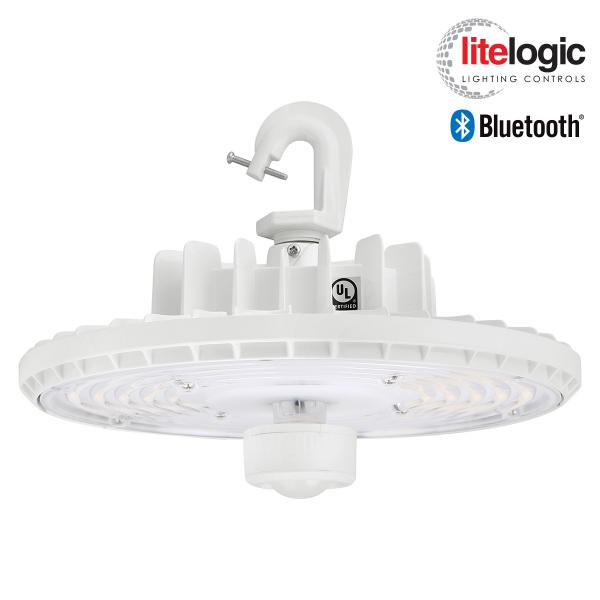

Barron Lighting RSHL Series Power and Color Selectable LED Slim Round Highbay Fixture Dimmable
Barron Lighting RSHL Series Power and Color Selectable LED Slim Round Highbay Fixture Dimmable
Specifications
Specifications
| Part Number# | RSHL |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 6,200 - 36,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed, Title 24 Compliant |
| CRI: | ≥70 |
| Dimensions: | ⌀ 10.7" - ⌀ 14.1" |
| Height: | 7.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.1 - 7.0 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting RSHL Series LED Slim Round Highbay Fixture combines efficiency with versatility in a sleek design. With lumen packages ranging up to 36,000 lumens, it offers customizable options like integral battery backup and various sensors, making it adaptable for diverse projects. Constructed from durable die-cast aluminum and featuring an IK08-rated polycarbonate lens, it ensures robust performance in wet locations. Ideal for retail, industrial, and commercial applications, this highbay fixture supports mounting heights up to 50 feet, boasting energy efficiency with up to 180 LPW efficacy and extended operational life exceeding 100,000 hours.
Construction:
• Die-cast aluminum housing with heat-dissipating fins in a white powder-coated finish
• Sealed design for use in Wet Locations (without BB or HVS options)
• ¾" Hook and security cable included
• 6’ Whip (3 conductor + 6’ whip for 0-10V dimming wires)
Optics/LEDs:
• UV-stabilized polycarbonate lens - IK08 impact tested
• 120° Distribution
• Multiple lumen packages from 6,200 to 36,000 lumens for job flexibility
• Switchable between three color temperatures: 3000K, 4000K, and 5000K CCT. Switch located and easily accessible outside enclosure
• Efficacy up to 180 LPW
• L70 >100,000 hours
• L90 >44,000 hours
• CRI ≥70
Electrical:
• Class 2 power supply, universal 120-277VAC, 50/60Hz
• Power Factor > 0.90
• 0-10V Dimming driver (dedicated 0-10V leads, 6’ whip)
• Built-in driver surge protection L/N-PE: 6kV, L-N: 4kV
Installation:
• ¾" NPT threaded hook included
• Can be conduit pendant (3/4”) mounted, (conduit by supplied other)
• Optional yoke mount bracket for surface mount installation
• Battery backup, field, or factory-installed
• 480V Step-Down Transformer Box, field, or factory installed
• Includes 6’ whip/cord standard (0-10V dedicated whip)
• Easily set wattage and CCT during installation using the adjustment switches located outside the housing
Options:
• Factory-installed battery backup (120-277VAC):
Option BB - 15W, delivers 2,000 lumens (100W and 150W units)
Option BB2 - 25W, delivers 3,500 lumens (230W units)
Both options provide over 90 min. of emergency-powered illumination
• Factory-installed step-down transformer
• See accessories for plug-and-play sensors – fixture is provided with a receptacle to accept AUX-based sensors
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
