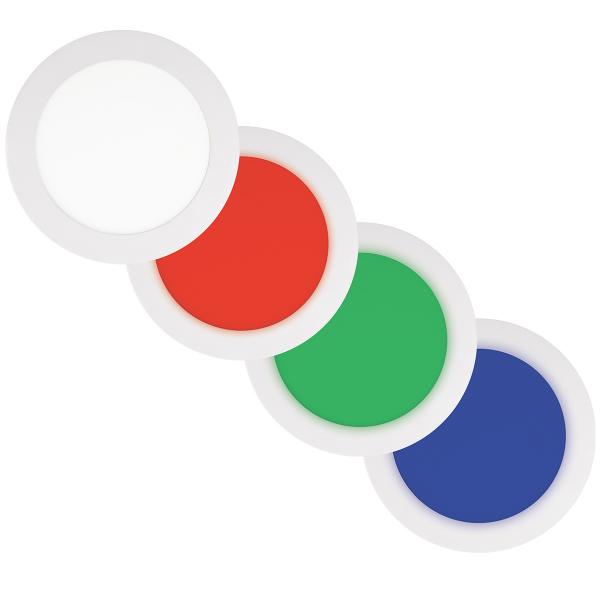

Barron Lighting RGBWRD Series RGB and Tunable White LED Recessed Downlight
Barron Lighting RGBWRD Series RGB and Tunable White LED Recessed Downlight
-
Specsheet:
Specifications
Specifications
| Part Number# | RGBWRD |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Commercial Offices, Education, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| CRI: | ≥80 |
| Dimensions: | See Product Options |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting RGBWRD Series LED Recessed Downlight with a slim profile ensures uniform illumination, free from any visible hot spots or shadows. These color-changing fixtures offer extensive installation flexibility, making them perfect for creating ambiance in diverse settings like restaurants, coffee shops, and bars. Designed for new construction applications and are available in various sizes featuring a durable die-cast aluminum frame with a sleek white finish. They utilize advanced optics with polycarbonate diffusers and SMD2835 RGBW Epistar chips, providing a wide color spectrum from warm to cool temperatures. Engineered for reliability and backed by certifications, including IP20 rating and a comprehensive warranty, these downlights offer both versatility and performance for dynamic lighting solutions.
Construction:
• Available in 4", 6", 8" and 11" configurations
• Die-cast aluminum frame with white finish
Optics/LEDs:
• Polycarbonate diffuser
• SMD2835 RGBW Epistar chips, gold wire, low light decay:
• R: 620-630nm
• G: 520-525nm
• B: 460-470nm
• W: 2700K-6500K CCT
• CRI ≥80
• Beam angle: 170°
Electrical:
• Input 24VDC (Purchase with either D-JB or RF accessory for 120VAC input)
• 2W to 20W depending on color
• Available accessories (sold separately): LED control/driver combination with hand-held remote (RF) or addressable decoder with driver to connect to a building DMX, includes junction box (D-JB)
Testing & Compliance:
• IP20 Rated
• Operating temperatures: -20°C to 50°C (-4°F to 122°F)
Installation:
• Suitable for new construction applications only
Warranty:
• Five-year limited warranty (Terms and Conditions Apply)
