Barron Lighting RGBWFP Series RGB and Tunable White LED Backlit Flat Panel
Barron Lighting RGBWFP Series RGB and Tunable White LED Backlit Flat Panel
Specifications
Specifications
| Part Number# | RGBWFP |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Commercial Offices, Education, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lumen Output: | 2,700 - 5,100 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CE, ETL Listed |
| CRI: | ≥80 |
| Dimensions: | See Product Options |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

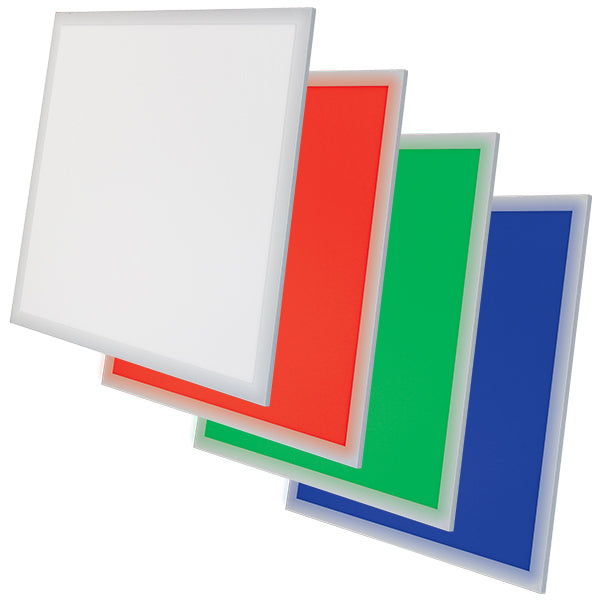

Barron Lighting RGBWFP Series LED Backlit Flat Panel from specialtyLED combines sleek design with versatile functionality. Featuring an ultra-thin profile that ensures uniform illumination without any noticeable hot spots or shadows, these panels go beyond standard white LED panels by offering vibrant color-changing capabilities. Available in multiple configurations and designed for easy installation in T-bar ceilings, these panels boast high-quality construction with an aluminum frame, seamless corners, and advanced optics including a PMMA diffuser and tuneable white LEDs. Backed by certifications and a comprehensive warranty, they are engineered to deliver reliable performance and aesthetic appeal, making them a standout choice for dynamic lighting solutions.
Construction:
• Available in 1' x 4', 2' x 2' and 2' x 4' configurations
• Aluminum frame with seamless corners
• Diffusion plate with more than 90% light transmittance
• Acrylic light guide for even illumination
• Recessed design for T-bar ceiling installation
• Enlarged junction box to facilitate connections
Optics/LEDs:
• PMMA GLP and polycarbonate diffuser
• Tuneable white LEDs 2800K - 6500K
• CRI >80
Electrical:
• 120VAC, 50/60Hz
• Output 24VDC
• 36W (1' x 4' and 2' x 2'), 60W (2' x 4')
• Optional DMX512 control
• Available with LED driver and hand-held RGB controller or DMX addressable decoder for connection to a building DMX512 controller (sold separately)
Testing & Compliance:
• ETL Listed
• CE Listed
• IP40 Rated
• Operating temperatures: -20°C to 50°C (-4°F to 122°F)
Available Accessories:
• STICK-KE2: Indoor 1024 channel DMX controller, controls up to six units on
a single address
• POWER4M: 6VDC, 0.65A Power adapter for STICK-KE2
Installation:
• Easy installation in T-bar ceilings
• Suspended and surface mounting kits available
• Up to 6 panels can be controlled off the handheld remote when installed
in the same room
• Up to 6 panels can be on the same address when being controlled with the DMX512
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
