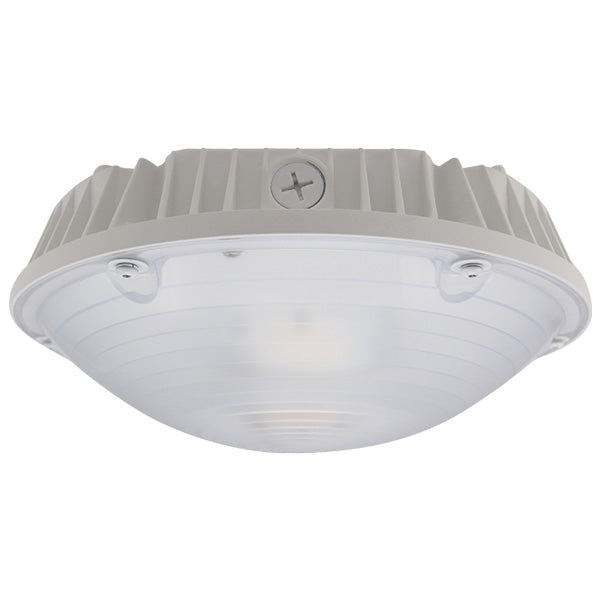

Barron Lighting RCL60 DLC Premium Listed 60 Watt LED Round Canopy Light Fixture Dimmable Replaces 250W HID
Barron Lighting RCL60 DLC Premium Listed 60 Watt LED Round Canopy Light Fixture Dimmable Replaces 250W HID
-
Specsheet:
Specifications
Specifications
| Part Number# | RCL60 |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Parking Garage |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 7432 - 7818 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed, Title 24 Compliant |
| CRI: | 80 |
| Dimensions: | 11.4" x 4.5" |
| Width: | 4.5" |
| Length: | 11.4" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.0 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
Barron Lighting RCL60 DLC Premium Listed 60 Watt LED Round Canopy Light Fixture Dimmable Replaces 250W HID
SPECIFICATIONS
CONSTRUCTION
• Die-cast aluminum housing with stainless steel hardware
• Hinged mounting plate for easy surface mount installation
• White powder coat finish
• Unit includes a 3’ whip for ease of wiring in pendant mount applications
• Hex head fasteners in a white finish optimize aesthetics and deter vandalism
OPTICS/LEDS
• High transmittance UV-stabilized dome Fresnel lens provides uplight
• 160° Distribution for optimal spacing
• 40W and 60W models with up to 7818 lumens for maximum project flexibility
• Efficacies up to 133 LPW maximize energy savings and utility rebates
• 4000K and 5000K CCT
• L90 of 54,000 hours at 40°C (104°F)
• CRI ≥ 80
ELECTRICAL
• Class 1, 120 - 277VAC driver, 50/60Hz
• 1-10V Dimming driver
• Power factor > 0.90
• Total harmonic distortion < 20%
INSTALLATION
• Easy surface mount installation with the hinged mounting plate. Can be surface mounted to standard 3-1/2” or 4” recessed square electrical J-box
• Three removable threaded plugs allow surface mounted 1/2” conduit feed
• Pendant mounted using a standard 3/4” downrod and hardware (supplied by others)
OPTIONS
• Integral 1-10V dimming occupancy sensor with built–in daylight control (SC)
TESTING & COMPLIANCE
• cULus Listed for Wet Locations
• DesignLights Consortium® (DLC) PREMIUM Qualified
• Meets state of California Title 24 requirements for dimming and control of light fixtures
• Operating temperatures: -20°C to 40°C (-4°F to 104°F)
WARRANTY
• Five year warranty (terms and conditions apply)
