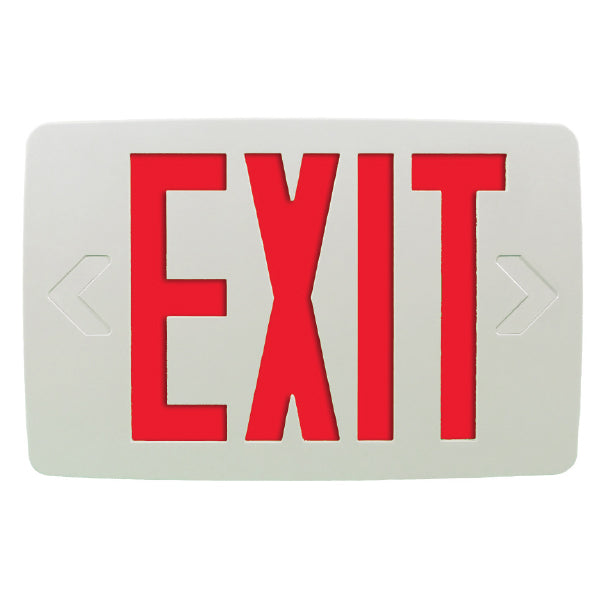

Barron Lighting QXT Universal Red Thin Thermoplastic Field-Selectable Single/Double Face Exit Sign Unit
Barron Lighting QXT Universal Red Thin Thermoplastic Field-Selectable Single/Double Face Exit Sign Unit
-
Specsheet:
Specifications
Specifications
| Part Number# | QXT-R |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, 5 Year Warranty, NEC, NFPA, OSHA, UL Listed |
| Dimensions: | 11.9" x 0.9" x 8.2" |
| Width: | 0.9" |
| Length: | 11.9" |
| Height: | 8.2" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting QXT Series is a Universal Red Thin Thermoplastic Field-Selectable Single/Double Face Exit Sign Unit designed for flexibility and durability. It is suitable for ceiling, end, or wall mount installations and is appropriate for use in damp locations, ensuring reliable performance in various environments.
Features:
• Universal, field-selectable single- or double-face
• Easy snap-out, field-selectable chevrons
• Suitable for Damp Locations
• Suitable for ceiling, end, or wall Mount
• California Energy Commission (CEC) Title 20 Compliant
Specification:
• Illumination: Legend: Long-life, high-intensity LEDs
• Housing: Injection-molded UL 94 5VA flame-retardant high-impact resistant thermoplastic enclosure
• Electrical Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free 1.2V NiCad battery
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Run Time: 90 Minute emergency run time, 24-hour recharge time
• Legend: Fully illuminated 6" characters with 3/4" stroke
• Mounting: Ceiling, end or wall mount, canopy included
• Finish: White
• Certifications: UL 924 Listed for Damp Locations Meets NFPA 101 Life Safety Code, NEC, OSHA
California Energy Commission (CEC) Title 20 Compliant
• Warranty: Any component that fails due to a manufacturing defect is guaranteed three years with a separate five-year prorated warranty for NiCad batteries. The
warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
