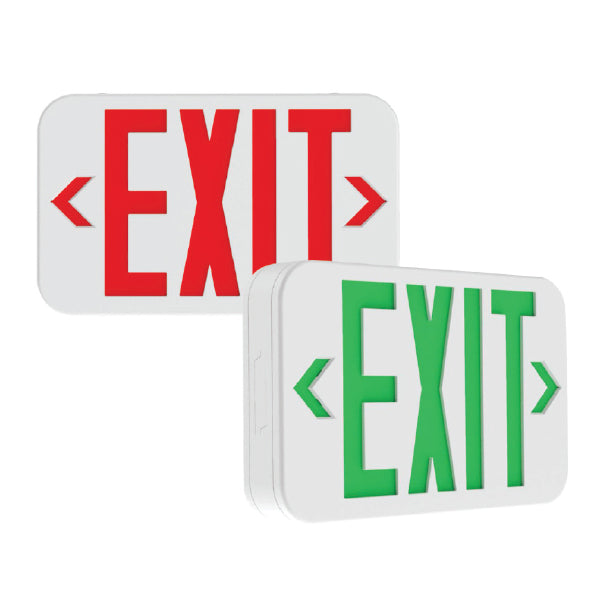

Barron Lighting QXS Universal Field-Selectable Red/Green LEDs Slim Thermoplastic Emergency Exit Sign Unit
Barron Lighting QXS Universal Field-Selectable Red/Green LEDs Slim Thermoplastic Emergency Exit Sign Unit
-
Specsheet:
Specifications
Specifications
| Part Number# | QXS-U |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, 5 Year Warranty, NEC, NFPA, OSHA, UL Listed |
| Dimensions: | 11.6" x 1.8" x 7.2" |
| Width: | 1.8" |
| Length: | 11.6" |
| Height: | 7.2" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting QXS Series is a Universal Field-Selectable Red/Green LEDs Slim Thermoplastic Emergency Exit Sign Unit that features an injection-molded UL 94 V-0 flame-retardant, high-impact resistant thermoplastic enclosure. This unit is suitable for damp locations, ensuring durability and safety in various environments.
Features:
• Universal, field-selectable red/green LEDs and color-matched
diffusers eliminates the need to stock both colors
• Universal, field-selectable single-/double-face
• Easy snap-out, field-selectable chevrons
• Suitable for Damp Locations
• California Energy Commission (CEC) Title 20 Compliant
Specification:
• Illumination: Field-selectable red and green LEDs, includes color matched diffusers
• Housing: Injection-molded UL 94 V-0 flame-retardant, high-impact resistant thermoplastic enclosure
• Electrical Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free 3.6V NiCad battery
• Operating Temp: 0°C to 40°C (32°F to 104°F)
• Run Time: 90 Minute emergency run time, 24-hour recharge time
• Legend: Fully illuminated 6" characters with 3/4" stroke
• Mounting: Ceiling, end or wall mount
• Finish: White
• Certifications: UL 924 Listed for Damp Locations Meets NFPA 101 Life Safety Code, NEC, OSHA
California Energy Commission (CEC) Title 20 Compliant
• Warranty: Any component that fails due to a manufacturing defect is guaranteed three years with a separate five-year prorated warranty for NiCad batteries. The warranty does not cover physical damage, abuse, or uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
