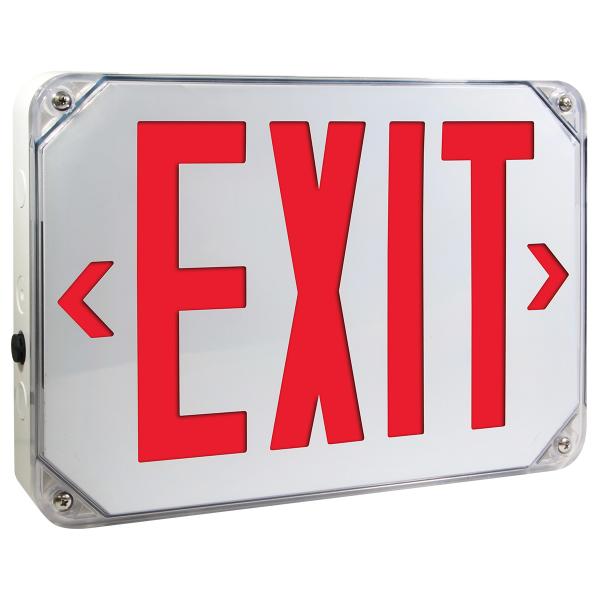

Barron Lighting NYN4X New York City Approved NEMA 4X LED Single-Face Exit Sign
Barron Lighting NYN4X New York City Approved NEMA 4X LED Single-Face Exit Sign
Specifications
Specifications
| Part Number# | NYN4X-1 |
|---|---|
| Type of Area: | Parking Garage |
| Lamp Life: | 100,000 Hours |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty, CUL Listed, Made In America Compliant, NEC, NEMA, NFPA, OSHA, UL Listed |
| Dimensions: | 14.5" x 2.13" x 10.5" |
| Width: | 2.13" |
| Length: | 14.5" |
| Height: | 10.5" |
| Dimmable: | No |
| Product Warranty: | 3 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's NYN4X New York City Approved NEMA 4X LED Exit Sign is engineered to withstand extreme conditions, making it suitable for parking garages, breezeways, and other environments where additional protection is required due to weather conditions. This exit sign meets or exceeds NEMA 4X and City of New York code requirements, ensuring high durability and compliance. It features fully illuminated 8" characters with a 1" stroke, long life, high-intensity red LEDs, and a maintenance-free NiCad battery, offering a 90-minute emergency run time and a 24-hour recharge time. Assembled in the USA with global components, the NYN4X Series is UL 924 Listed, NEMA 4X rated, and approved for wet locations, providing a reliable and robust exit solution.
Features:
• New York City Approved
• Suitable for Wet Locations and NEMA 4X applications
• UL 924 Listed 90-minute emergency run time, 24-hour recharge time
• Fully illuminated 8" characters with 1" stroke
• Assembled in USA with global components
Specifications:
Illumination: Long-life, high-intensity, red LEDs
Legend: Fully illuminated 8” characters with 1” stroke
Construction: NEMA 4X rated polycarbonate, fully gasketed enclosure with field-selectable directional chevrons
Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free NiCad battery
Operating Temp: 0°C to 40°C (32°F to 104°F)
Run Time: UL Listed 90 minute emergency run time, 24 hour recharge time
Mounting: Universal knockout pattern on backplate for back mount; optional pendant mount
Finish: White
Certifications: UL 924 Listed for Wet Locations, NEMA 4X rated, Meets or exceeds NFPA 101 Life Safety Code, NEC, OSHA and New York City Code requirements
Warranty: Any component that fails due to a manufacturing defect is guaranteed for three
years with a separate three year prorated warranty on the battery. The warranty does not
cover physical damage, abuse or instances of uncontrollable natural forces. See the full
Exitronix warranty document for detailed information. (Terms and Conditions apply)
