Barron Lighting NXFE Series LED Emergency Unit with NEMA 4X Certified Polycarbonate Enclosure
Barron Lighting NXFE Series LED Emergency Unit with NEMA 4X Certified Polycarbonate Enclosure
-
Specsheet:
Specifications
Specifications
| Part Number# | NXFE |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Manufacturing Plants, Office & Small Retail, Hotels, Hospitals, Service Counters, Commercial Offices, Factory / Industrial, Retail |
| Lumen Output: | 219 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, IP65 / IP66 / IP67, NEC, NEMA, NFPA, OSHA, UL Listed |
| Dimensions: | 14.9" x 6.8" x 6.3" |
| Width: | 6.8" |
| Length: | 14.9" |
| Height: | 6.3" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

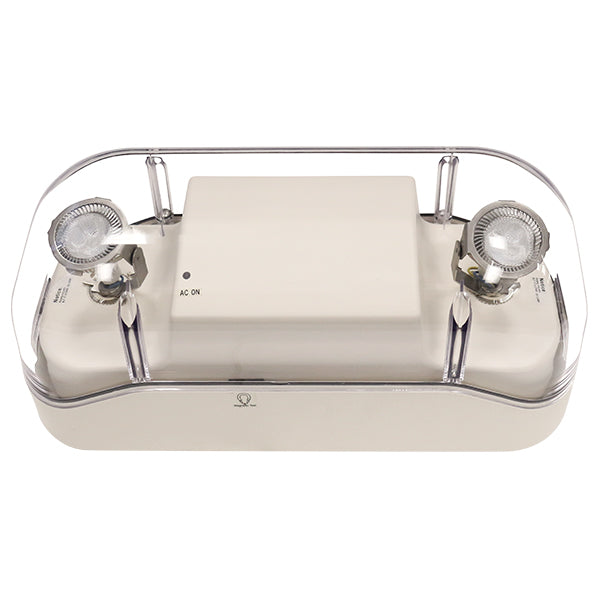

The Barron Lighting NXFE Series is an LED Emergency Unit with a NEMA 4X Certified Polycarbonate Enclosure. It is NEMA 4X Certified, UL-EPH Classified, and IP66 Rated, making it suitable for harsh environments. Designed for extreme commercial and heavy industrial applications, it provides reliable emergency lighting solutions. The reinforced polycarbonate enclosure ensures durability and protection against vandalism and wet conditions.
Features:
• NEMA 4X Certified
• UL-EPH Classified
• IP66 Rated
• Provides 7.8W, 28.8W and 46.8W of remote capacity with 15W, 36W and 54W models respectively; compatible with NXFR remote heads
• Touchless, magnetically operated test switch (non-AC models only)
• Up to 52' on-center spacing
Specifications:
• Illumination: Two 3.3W LED MR16 style lamp heads with 219 lumens each
• Housing: NEMA 4X rated polycarbonate enclosure, polycarbonate lens, and stainless steel hardware
• Battery: Maintenance-free sealed lead calcium or NiCad battery
• Electrical Input: 120/277VAC Dual primary, 60Hz
• Operating Temp: 15W Models: 0°C to 50°C (32°F to 122°F) 36W and 54W Models: 10°C to 40°C (50°F to 104°F)
• Cold Location option: -25°C to 50°C (-13°F to 122°F)
• Run Time: 90 Minute emergency run time, 24-hour recharge
• time; alternate run times available - consult factory
• Mounting: Back/wall mount
• Finishes: Black or White
• Certifications: UL 924 Listed for Wet Locations Meets NFPA 101 Life Safety Code, NEC, OSHA ANSI/UL Classified for use in food service operations NEMA 4X and IP66 Rated
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate two-year prorated warranty for sealed lead calcium batteries and a five-year prorated warranty for NiCad batteries. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information
