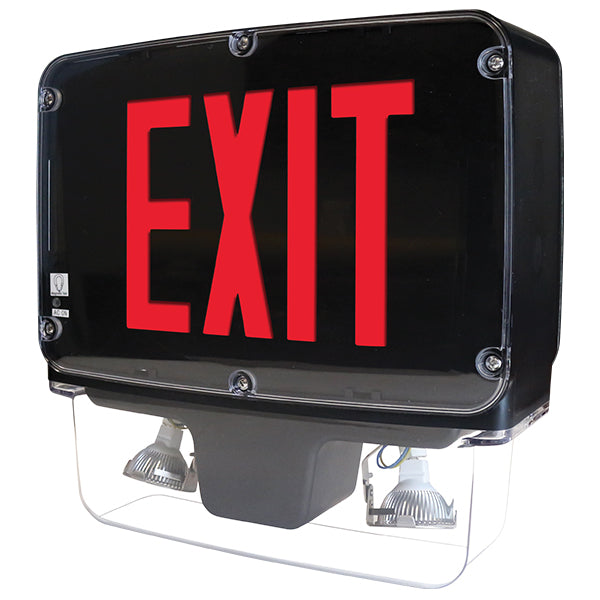

Barron Lighting NXFC-1 LED Single-Face Exit Sign Combo with NEMA 4X Certified Polycarbonate Enclosure
Barron Lighting NXFC-1 LED Single-Face Exit Sign Combo with NEMA 4X Certified Polycarbonate Enclosure
Specifications
Specifications
| Part Number# | NXFC-1 |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Manufacturing Plants, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Lumen Output: | 219 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, IP65 / IP66 / IP67, NEC, NEMA, NFPA, OSHA, UL Listed |
| Dimensions: | 14.9" x 4" x 14.2" |
| Width: | 4" |
| Length: | 14.9" |
| Height: | 14.2" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This NXFC-1 combines durable construction with advanced functionality, making it ideal for demanding environments. Its NEMA 4X certified polycarbonate enclosure and IP66 rating ensure protection against moisture, dust, and harsh conditions. Featuring long-life LEDs, maintenance-free batteries, and touchless testing, it provides reliable and efficient emergency lighting. Compliant with UL, NFPA, OSHA, and CEC standards, this exit sign is a dependable choice for both industrial and food service applications.
Features:
• NEMA 4X Certified
• UL-EPH Classified
• California Energy Commission (CEC) compliant
• IP66 Rated
• Provides 4.8W, 7.8W and 20.8W of remote capacity with 12W, 15W and 28W models respectively (with lamp heads); provides 11.4W, 14.4W and 27.4W of remote capacity with 12W, 15W and 28W models respectively (without lamp heads); compatible with NXFR and MLED remote heads
• Touchless, magnetically operated test switch
• Easy snap-out, field-selectable chevrons
• Up to 52' on-center spacing
Specifications:
• Illumination: Long-life, high-intensity, green or red LEDs. Two 3.6W LED MR16 style lamp heads
• Housing: NEMA 4X rated polycarbonate enclosure, polycarbonate lens, and stainless steel hardware
• Electrical Input: 120/277VAC Dual primary, 60Hz
• Battery: Maintenance-free sealed lead calcium or NiCad battery
• Operating Temp: 12W and 15W Models: 0°C to 50°C (32°F to 122°F) 28W
• Models: 10°C to 40°C (50°F to 104°F)
• Cold Location Option: -20°C to 50°C (-4°F to 122°F)
• Run Time: 90 Minute emergency run time, 24-hour recharge time
• Legend: Fully illuminated 6" characters with 3/4" stroke
• Mounting: Back, end or top mount
• Finishes: Black or White
• Certifications: UL 924 Listed for Wet Locations Meets NFPA 101 Life Safety Code, NEC, OSHA ANSI/UL Classified for use in food service operations California Energy Commission (CEC) Title 20 Compliant NEMA 4X and IP66 Rated
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five-year prorated battery warranty. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information.
