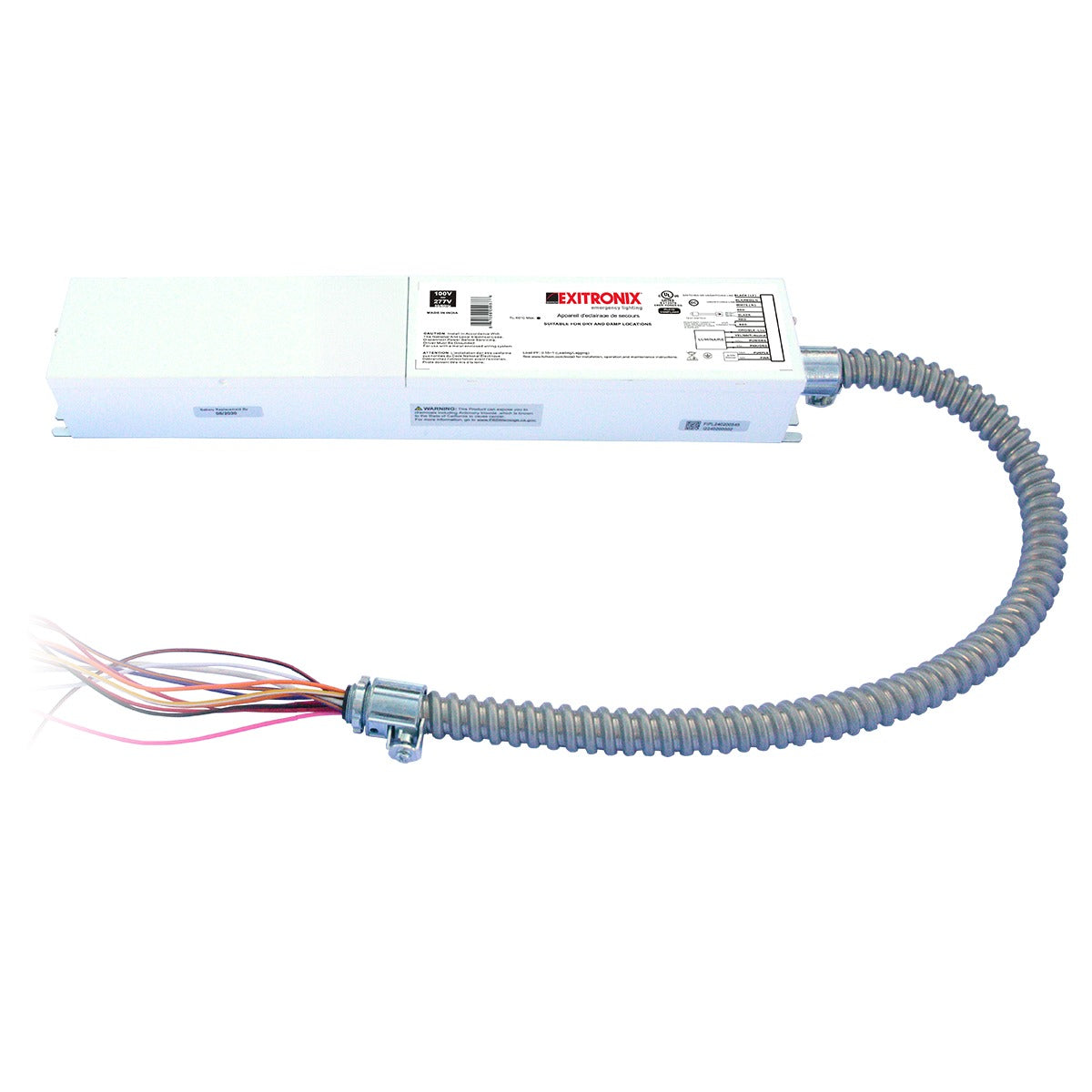

Barron Lighting MI-25-G2 25-Watt Emergency Micro Inverter
Barron Lighting MI-25-G2 25-Watt Emergency Micro Inverter
Specifications
Specifications
| Part Number# | MI-25-G2 |
|---|---|
| Type of Area: | Retail |
| Wattage: | 25 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, ROHS, UL Listed |
| Dimensions: | 15.3" x 2.9" x 1.5" |
| Width: | 2.9" |
| Length: | 15.3" |
| Height: | 1.5" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 100V-277V |
| Manufacturer: | Barron |
Details
Details
ShineRetrofits Input:
Barron Lighting's 25-watt Emergency Micro inverter is used for backup lighting. It powers any fixture type for 90 minutes during an outage. It supports one 150W luminaire or multiple fixtures up to 150W total in normal mode. In emergencies, it delivers 25W of output for reliable, bright egress lighting.
Features:
• Delivers power to any fixture (any tech type) in emergency mode for 90 minutes at 25W
• Functions in conjunction with the existing building electrical system to provide back-up power protection
• Supports one 150W luminaire or multiple fixtures whose system wattage adds up to 150W
• Capacity: 25W
• Input Voltage / Frequency: 100-277VAC, 50/60Hz
• Input Current: 0.12A
• Input Power 11W
• AC Load Input Power: 150W Max. when using 0-10V dimming 25W Max. when 0-10V dimming is not used
• Output Power: 25W Max. (45VA Max.)
• Output Voltage Range: 120/220/277VAC Auto Select, 60Hz.
• Number of Output Channels: 1 Channel
• Remote Mounting Distance: Up to 164' (50m) with 18AWG
