Barron Lighting LPX-CPM Series Power and Color Switchable LED Backlit Flat Panel Dimmable
Barron Lighting LPX-CPM Series Power and Color Switchable LED Backlit Flat Panel Dimmable
Specifications
Specifications
| Part Number# | BARRON-LPX |
|---|---|
| Type of Area: | Schools, Hotels, Hospitals, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,200 - 5,500 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, UL Listed |
| CRI: | ≥80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 0 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.25 - 4.6 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

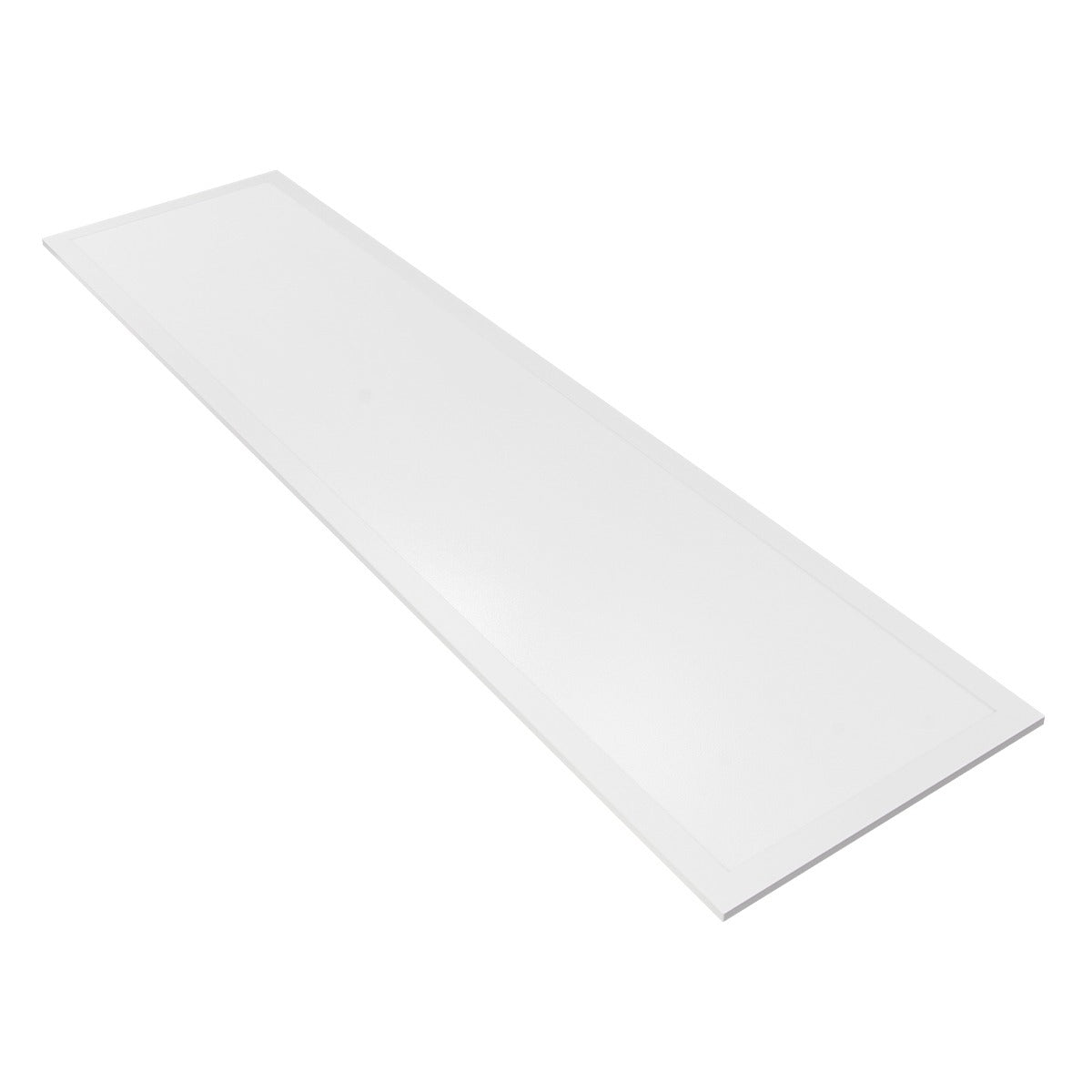

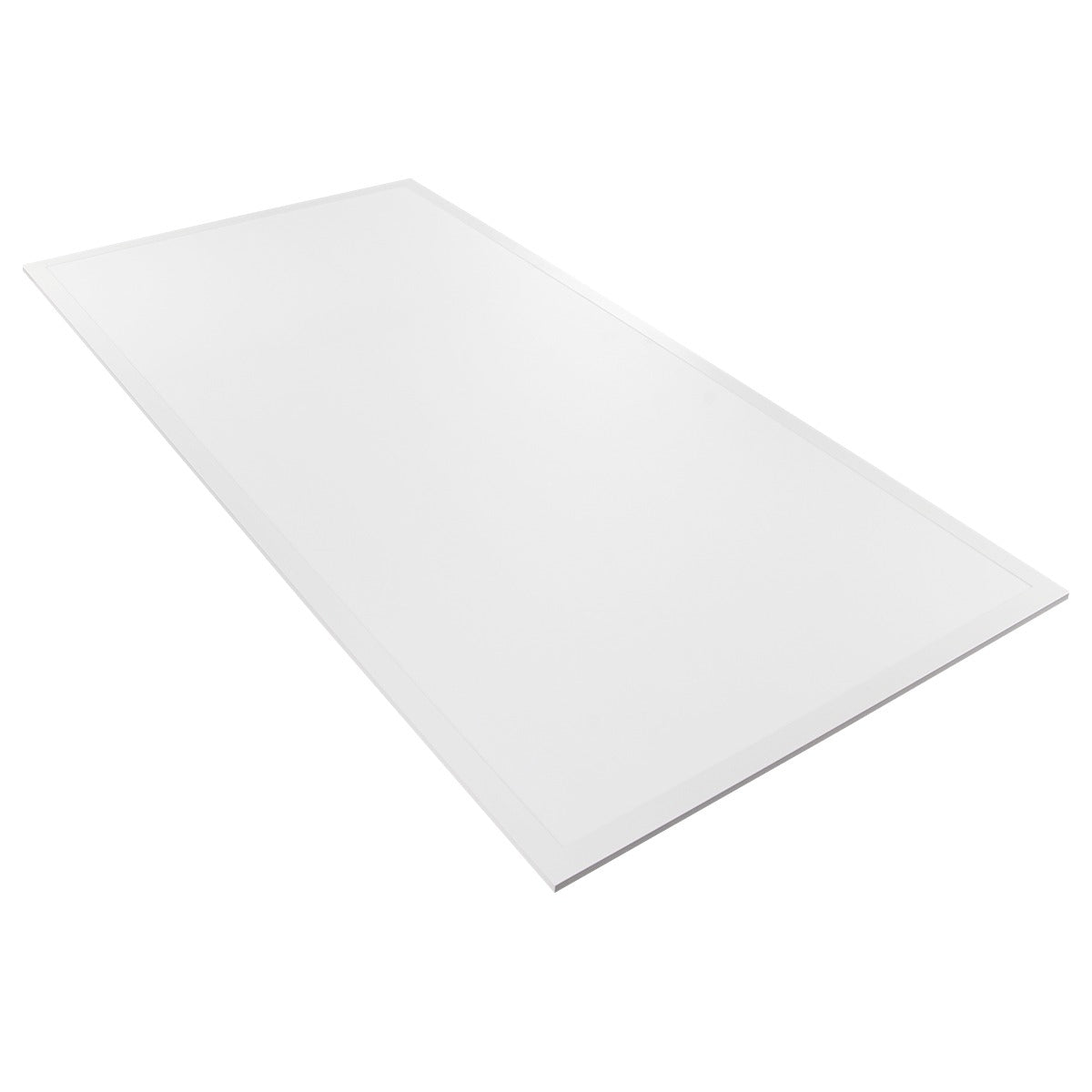

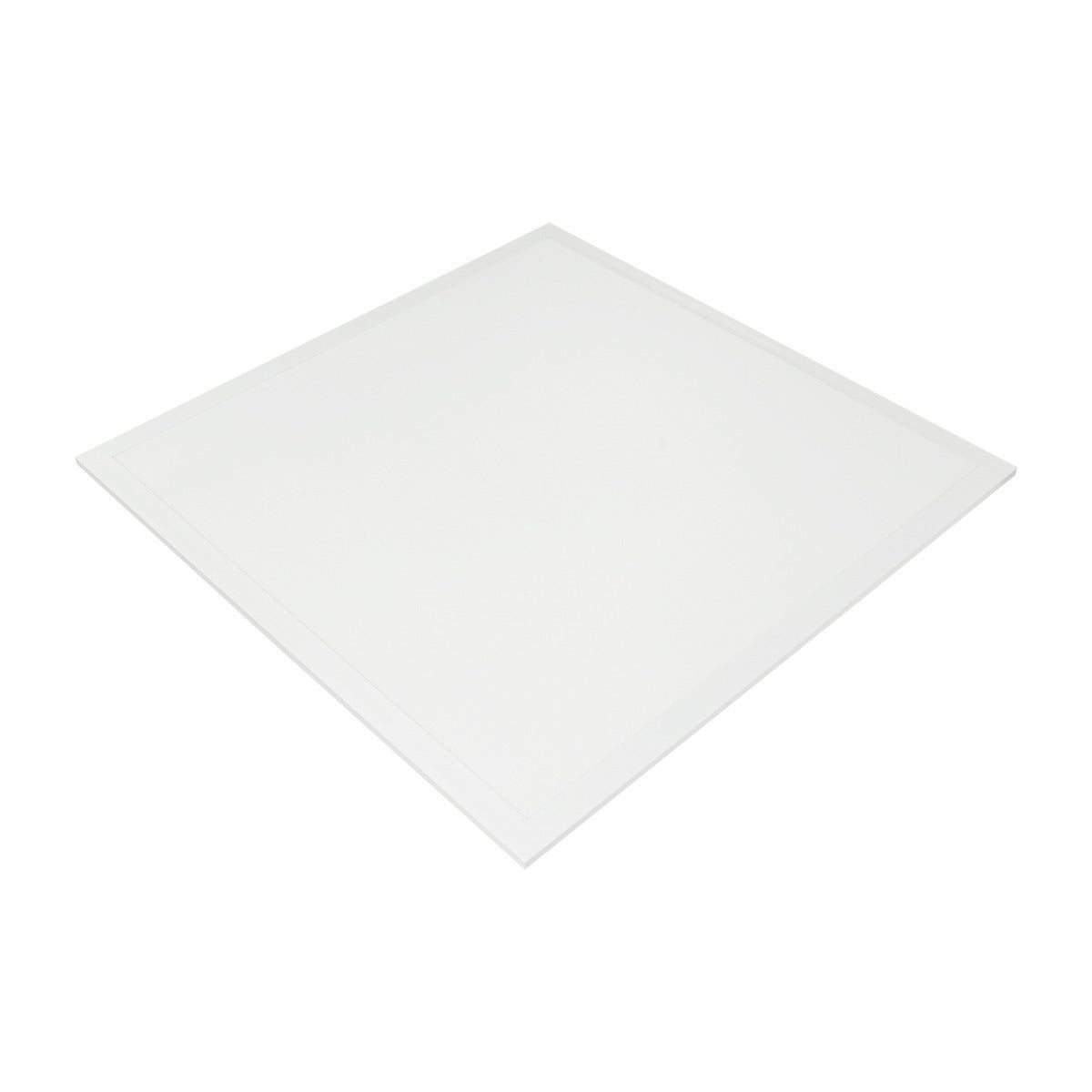

Barron Lighting's LPX-CPM Series LED backlit flat panel delivers reliable, uniform illumination in commercial environments. Available in 1x4, 2x2, and 2x4 sizes, it features field-selectable wattages and color temperatures, offering up to 5,500 lumens with consistent, glare-free lighting from its backlit PMMA lens design. The ultra-slim 1.5" recessed fixture fits easily into most standard T-bar grid ceilings, with IC and damp location ratings, 0-10V dimming, and optional 8W battery backup for emergency egress lighting. DLC qualified and backed by a 5-year warranty, the LPX-CPM Series combines cost-efficiency, flexibility, and performance for both retrofit and new construction applications.
Features:
• Die-formed steel enclosure with powder-coated matte white finish
• Backlit design
• UV-stabilized PMMA (Polymethyl methacrylate) LED lenses
• Uniform illumination with no visible LED pixilation
• Field-switchable color temperature 3500K-4000K-5000K CCT
• Field-switchable wattage; 20W-30W-40W (1x4, 2x2) or 30W-40W-50W (2x4)
• Lumen packages range from 2,200 to 5,500 lumens
• IC Rated for use in insulated ceilings
• cULus Listed for Damp Locations, IC rated for insulated ceilings
• IP20 Rated
• DesignLights Consortium® (DLC) Qualified
• 1x4/2x2/2x4 Luminaires for Ambient Lighting Interior Commercial Spaces
• Low-Bay Luminaires for Commercial and Industrial Buildings (2x2 and 2x4 models only)
• Five-Year Warranty (Terms and Conditions Apply)
• Warranty is limited to the repair and/or replacement of this product. The warranty is covered by the Original Equipment Manufacturer.
