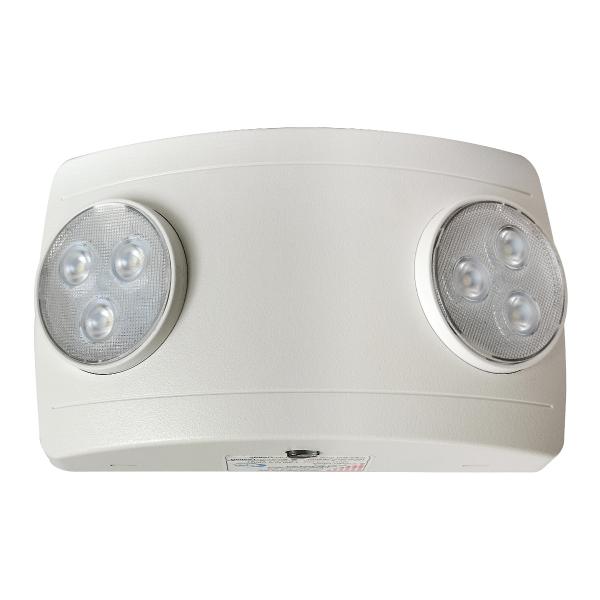

Barron Lighting LED-51 Ultracompact 2 x 1-Watt LED Lamp Emergency Lighting Unit with Wide Lens
Barron Lighting LED-51 Ultracompact 2 x 1-Watt LED Lamp Emergency Lighting Unit with Wide Lens
-
Specsheet:
Specifications
Specifications
| Part Number# | LED-51 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Lumen Output: | 220 |
| Wattage: | 1 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| Dimensions: | 7.31" x 2.29" x 4.25" |
| Width: | 2.29" |
| Length: | 7.31" |
| Height: | 4.25" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -30 to 55 |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting LED-51 Series is an Ultracompact Emergency Lighting Unit that features a 1-watt per LED lamp with a wide lens for effective illumination. This unit is designed for wall or ceiling back mount installation and is suitable for damp locations, making it a versatile choice for various emergency lighting applications.
Features:
• Injection-molded UL 94 V-0 flame rated thermoplastic housing
• Wall or ceiling back mount
• Remote option provides 2W of remote capability (LED-52 only), compatible with JLED, RL1-WP and RL52 remote lamps
• cULus Listed
• Suitable for Damp Locations
Specification:
• Illumination: LED-51 standard with 1W LED lamp heads (2W total) LED-52 standard with 1.5W high-performance LED lamp heads (3W total)
• Housing: UL 94 V-0 flame-retardant, corrosion-resistant thermoplastic
• Input: 120/277VAC input, 60Hz
• Battery: Maintenance-free NiCad (LED-51/52) or NiMH (LED-52-R2)
• Operating Temp: 10°C to 40°C (50°F to 104°F)
• Run Time: cULus Listed 90 minute emergency run time, 24-hour recharge time
• Mounting: Universal knockout pattern on backplate for ceiling or wall back mount, optional I-beam mounting bracket is available
• Finishes: Black or White
• Options: G2 - Self-test/Self-diagnostics (LED-52 only) R2 - Remote Capable (2W - LED-52 only), compatible
with JLED, RL1-WP and RL52 remote lamps
• Certifications: cULus 924 Listed, meets or exceeds NEC requirements and NFPA 101
• Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years, with a three-year prorated warranty on the battery. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix
warranty document for detailed information. (Terms and conditions apply)
