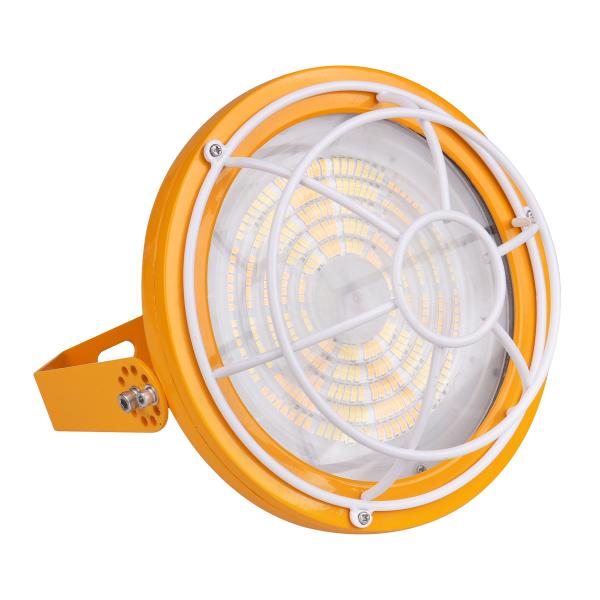

Barron Lighting LDL-30-15D-C-WG-YL Color Switchable 30-Watt LED Dock Light Fixture with Wireguard
Barron Lighting LDL-30-15D-C-WG-YL Color Switchable 30-Watt LED Dock Light Fixture with Wireguard
Specifications
Specifications
| Part Number# | LDL-30-15D-C-WG-YL |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,400 |
| Wattage: | 30 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥80 |
| Dimensions: | 8.27" x 8.44" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's LDL Series LED Dock Light Fixture is a robust and reliable solution for dock lighting needs. Featuring CCT selectability and a 15° focused beam, this dock light ensures comprehensive illumination throughout the entire length of trailers. Equipped with LumiLed LED chips and UV-resistant optics, the LDL Series offers excellent performance and durability, while the white wireguard protects the glass lens. With an IP65 rating for outdoor applications, an industrial dark yellow powder coat for high visibility, and a variety of mounting options, this fixture is designed for both functionality and resilience.
Features:
• Rugged die-cast aluminum housing
• Fixture is supplied with quick connect for easy installation
• Easily accessible On/Off push button on fixture housing
• Chip- and fade-resistant industrial dark yellow powder-coated finish for high visibility
• Glass lens protected by wireguard with white finish
• Optional 42" mounting arm featuring:
• Two (2) hinged points for optimal positioning
• Pre-wired arm with quick connect (3 conductor whip to be hardwired)
• 15° Narrow beam distribution with Wireguard
• Switchable between three color temperatures: 3000K, 4000K & 5000K CCT
• Switch located and easily accessible outside enclosure
• CRI ≥80
• L70 > 100,000hrs
• L90 > 50,000hrs
• Class 2 power supply, Universal 120-277VAC, 50/60Hz
• Power Factor > 0.90
• Built in drive surge protection L/N-PE: 4kV, L-N: 4kV
• Yoke mount bracket for mounting to desired surface
• Fixture aiming with adjustable hex screw on yoke
• Easily accessible On/Off push button on fixture closure
• Easily set CCT during installation using the adjustment switches located outside the housing
• Optional mounting arm extends to 42" (LDL-ARM), features two (2) hinged points for optimal positioning and comes pre-wired with quick connect
• cULus Listed for Wet Locations (Damp Location listed with optional mounting arm)
• IP65 Rated (fixture only); arm assembly is Damp Location rated
• Operating temperatures: -40°C TO 45°C (-40°F to 113°F)
