Barron Lighting JJL-30 30 Watt LED Vaportight Jelly Jar Fixture with Adjustable Knuckle
Barron Lighting JJL-30 30 Watt LED Vaportight Jelly Jar Fixture with Adjustable Knuckle
-
Specsheet:
Specifications
Specifications
| Part Number# | JJL-30 |
|---|---|
| Type of Area: | Industrial & Warehouse, Parking Garage, Factory / Industrial |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,400 - 2,600 |
| Wattage: | 30 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, IP65 / IP66 / IP67, UL Listed |
| CRI: | 90 |
| Dimensions: | 12.0" x 4.5” |
| Width: | 4.5” |
| Length: | 12.0" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.43 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

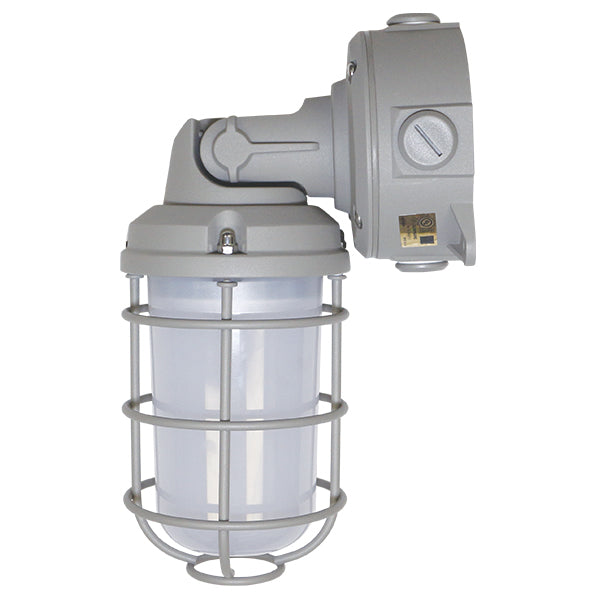

The Barron Lighting JJL Series is an 30 Watt LED Vaportight Jelly Jar Fixture that delivers 2600 lumens with a 90 CRI and is available in 3000K and 4000K color temperatures. It features an adjustable knuckle and a sturdy die-cast aluminum enclosure with a strong steel wire guard and a polycarbonate globe. With a life span of 54,000 hours and a five-year warranty, this fixture is ideal for applications such as walkways, industrial facilities, stairwells, elevator shafts, schools, medical complexes, retail entrances, and any commercial buildings and multi-family properties.
Construction:
• Die-cast aluminum housing in a powder-coated silver-gray finish with stainless steel hardware
• Steel wire guard for maximum protection
• UV stabilized polycarbonate globe
• Unit can be rotated from 0° to 90° for ceiling or wall mount installation
• Backbox includes four conduit entry points for ease of installation
Optics/LEDs:
• UV stabilized polycarbonate globe offering an even, diffused light ideal for a variety of applications
• 30W system offering up to 2600 lumens
• Energy savings compared to traditional light sources
• Available in 3000K and 4000K CCT
• L70 reported >54,000 hours
• CRI ≥90
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• Non-dimming driver
• 4KV driver protection
Installation:
• For ceiling or wall mount applications
• Housing can be adjusted from 0° to 90° and locked into position
• Backbox accommodates ½” conduit entry on four sides
• Mounts to a standard 3-½” or 4” square electrical J-box
Testing & Compliance:
• cULus Listed for Wet Locations
• Tested to meet IP65 requirements
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
Light fixture
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
