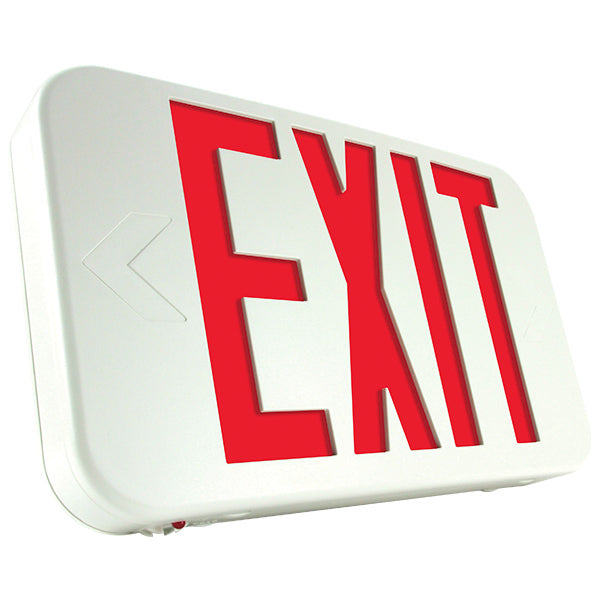

ILX-RG Series Field-Switchable LED Exit Sign

The ILX-RG Series combines a compact, contemporary design with reliable electronics and energy-efficient LED exit illumination. Its snap-together construction and universal mounting simplify installation above doors and in tight spaces. An interior DIP switch lets installers select red or green legend illumination in the field.

Features and Benefits

• Ultra-compact, low-profile design.

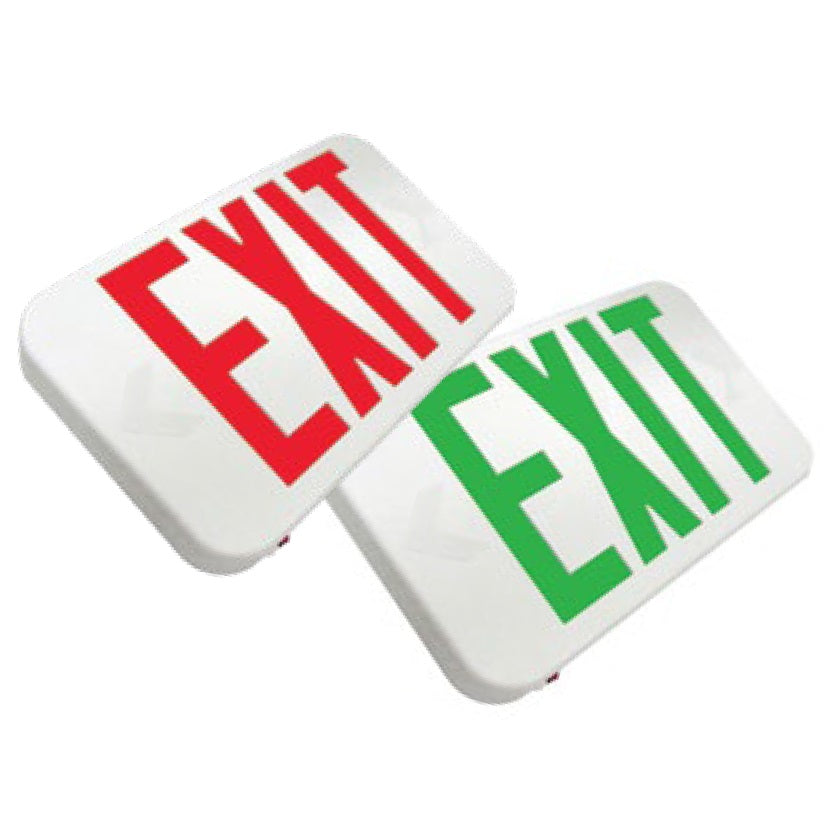

• Field-switchable red or green legend using the interior DIP switch.
• Easy-to-install, snap-together construction.
• Universal configuration includes two faceplates with red and green diffusers, a backplate, and a mounting canopy.
• Constant, uniform illumination from long-life, high-intensity LEDs.
• Fully illuminated 6-inch characters with a 3/4-inch stroke.
• Field-selectable directional chevrons included for all configurations.
• Ceiling, end, or wall mounting with included canopy.
• Available in black or white finishes.

Technical Specifications

• Illumination: Red or green field-switchable LEDs; red and green diffusers included.
• Housing: Rugged, injection-molded UL 94 5VA flame-retardant, high-temperature thermoplastic.
• Input: 120/277V dual primary, 60Hz.
• Battery: Maintenance-free NiCad.
• Operating temperature: 0°C to 50°C (32°F to 122°F).
• Emergency run time: UL Listed 90-minute operation.
• Recharge time: 24 hours.

Certifications and Options

• UL Listed for Damp Locations.
• California Energy Commission (CEC) compliant.
• Optional USA configuration: manufacturer states Buy American Act (BAA) compliance with the USA option and identifies this option as meeting Buy America requirements.

Warranty

Components that fail due to a manufacturing defect are guaranteed for five years, with a separate five-year prorated warranty on the battery. The warranty excludes physical damage, abuse, and instances of uncontrollable natural forces. See the full Exitronix warranty document for details. Terms and conditions apply.
