Barron Lighting FXA DLC Premium Listed 15/27/45 Watt LED Small Square Back Flood Light Fixture 50-150W HID Equivalent
Barron Lighting FXA DLC Premium Listed 15/27/45 Watt LED Small Square Back Flood Light Fixture 50-150W HID Equivalent
Specifications
Specifications
| Part Number# | FXA |
|---|---|
| Type of Area: | Gym & Sports, Landscape & Flood, Pole / Street / Parking Lot, Road & Street |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,000 - 5,650 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 50W HID Equivalent, 100W HID Equivalent, 150W HID Equivalent, CUL Listed, DLC Premium, IP65 / IP66 / IP67 |
| CRI: | 70 |
| Dimensions: | 6" x 2.6" x 3.8" (15W & 27W) | 8" x 3.1" x 4.8" (45W) |
| Width: | 2.6"/3.1" |
| Length: | 6"/8" |
| Height: | 3.8"/4.8" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.7-3.5 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
Barron Lighting FXA DLC Premium Listed 15/27/45 Watt LED Small Square Back Flood Light Fixture 50-150W HID Equivalent
SPECIFICATIONS
Construction:
• Die-cast aluminum housing in a bronze powder coated finish
• UV stabilized polycarbonate lens
• Integral heat sink maximizes heat dissipation for longer LED life
• Vented housing isolated the driver from the LED compartment, maximizing heat dissipation and fixture life, compartment sealed with continuous silicone gasket

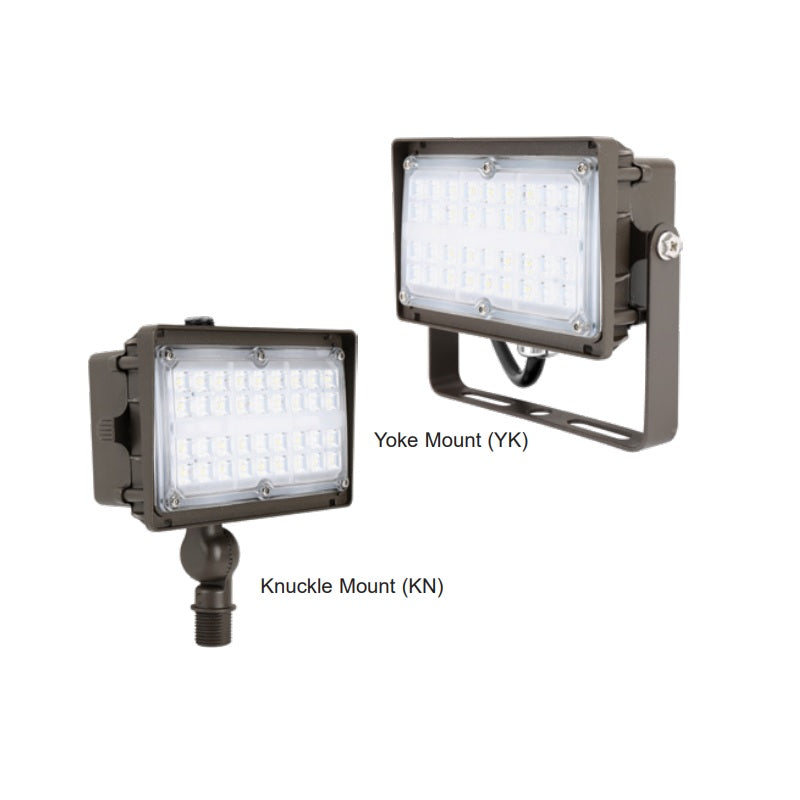

• Knuckle or yoke mount options
Optics/LEDs:
• UV-stabilized polycarbonate lens, NEMA wide distribution 7Hx6V (W)
• 15W-45W LED models replace 50W-150W HID for up to 70% energy savings
• Up to 5650 lumens for a variety of applications (See FXA 70-350W spec for lumens packages up to 50,000 lumens)
• Efficacies up to 133 LPW maximize energy savings and utility rebates
• Available in 3000K, 4000K and 5000K CCT
• L70 >100,000 hours
• CRI ≥70
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• Non dimming driver
Installation:
• Easy installation in new construction or retrofit applications
• Multiple mounting options available to suit your application (knuckle (KN) and yoke (YK) mount)
Options:
• Factory installed 120/277VAC button type photocontrol (PC)
Accessories:
• Button type universal photocontrol 120/277VAC (PCU)
Testing & Compliance:
• cULus Listed for Wet Locations
• Tested to meet IP65 requirements
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) Qualified (verify QPL for specific models)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
