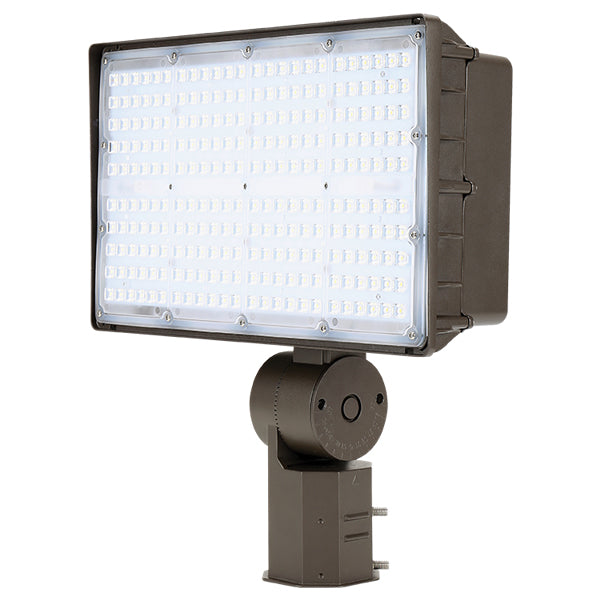

Barron Lighting FXA-70-W-VS-4K-BR-TR DLC Premium Listed 70 Watt LED Large Square Back Flood Light Fixture Dimmable 4000K 250W HID Equivalent
Barron Lighting FXA-70-W-VS-4K-BR-TR DLC Premium Listed 70 Watt LED Large Square Back Flood Light Fixture Dimmable 4000K 250W HID Equivalent
Specifications
Specifications
| Part Number# | FXA-70-W-VS-4K-BR-TR |
|---|---|
| Type of Area: | Gym & Sports, Landscape & Flood, Pole / Street / Parking Lot, Sign & Billboards, Road & Street |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 8900 |
| Wattage: | 70 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 250W HID Equivalent, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67 |
| CRI: | 70 |
| Dimensions: | 11.1" x 4.9" x 6.1" |
| Width: | 4.9" |
| Length: | 11.1" |
| Height: | 6.1" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.4 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
Barron Lighting FXA-70-W-VS-4K-BR-TR DLC Premium Listed 70 Watt LED Large Square Back Flood Light Fixture Dimmable 4000K 250W HID Equivalent
SPECIFICATIONS
Construction:
• Die-cast aluminum housing in a powder coated finish
• UV stabilized polycarbonate lens
• Integral heat sink maximizes heat dissipation for longer LED life
• Vented housing isolated the driver from the LED compartment, maximizing heat dissipation and fixture life
• Driver compartment sealed with continuous silicone gasket
• Unit includes trunnion mount for 70W-200W models
• Slipfitter accessory available for 70W-200W models
• Yoke mount for 350W model
Optics/LEDs:
• UV-stabilized polycarbonate lens, wide NEMA distribution 7Hx6V (W), optional medium narrow NEMA 4Hx4V (MN) available for 135W-350W configurations
• 70W-350W LED models replace 250W-1000W HID for up to 70% energy savings
• Up to 50,000 lumens for a variety of applications (See FXA 15-45W spec for lumens packages from 2000 to 5650 lumens)
• Efficacies up to 137 LPW maximize energy savings and utility rebates
• Available in 4000K and 5000K CCT
• L70 >100,000 hours
• CRI ≥70
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 347/480VAC option (not available for 100W configuration)
• 1-10V dimming driver
Installation:
• Easy installation in new construction or retrofit applications
• Multiple mounting options available to suit your application trunnion (TR) and slipfitter (SF) mount for 70W to 200W
• Yoke mount (YK) for the 350W configuration
Options:
• Factory installed 120/277VAC button type photocontrol (PC)
Accessories:
• Button type universal photocontrol 120/277VAC (PCU)
• Slipfitter mount for 70W-200W (SF)
Additional Mounting Accessories:
• Quad 90° bullhorn mount (AXL2-80/280-BQ)
• Triple 120° bullhorn mount (AXL2-80/280-BT)
• Wall mount bracket (AXL2-80/280-W)
• Wall mount bracket, 90° (AXL2-80/280-W90)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Testing & Compliance:
• cULus Listed for Wet Locations
• Tested to meet IP65 requirements
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) PREMIUM Qualified (verify QPL for specific models)
