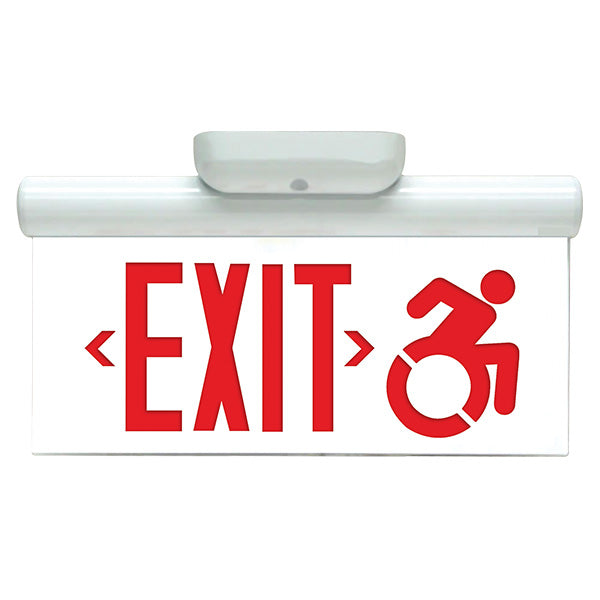

Barron Lighting CTC90 Cylindrical Surface Mount Wheelchair Accessible Edge-Lit Exit Signs
Barron Lighting CTC90 Cylindrical Surface Mount Wheelchair Accessible Edge-Lit Exit Signs
Specifications
Specifications
| Part Number# | CTC90 |
|---|---|
| Type of Area: | Apartment Buildings, Office & Small Retail, Hospitals, Commercial Offices |
| Lamp Life: | 100,000 Hours |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, NEC, NFPA, UL Listed |
| Width: | 2" |
| Length: | 14.5" - 18.0" |
| Height: | 10.0" - 10.8" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting CTC900E Cylindrical Surface Mount Edge-Lit Exit Signs offer a versatile solution with a 'quick-slide' canopy for easy adjustment from wall to ceiling mount. Featuring high-intensity red or green LEDs, these signs provide bright and uniform illumination in an edge-lit design, along with the State of Connecticut required modified accessibility symbol. Constructed with an extruded aluminum enclosure and a powder-coated finish, the CTC900E Series ensures durability and compliance with ADA, California Energy Commission (CEC), and Buy American Act (BAA) standards. With maintenance-free NiCAD batteries, CSA-listed 90-minute emergency run time, and multiple mounting options, this series is ideal for ensuring visibility and accessibility in emergencies.
Features:
• Meets State of Connecticut Emergency Building Code requirements (Para. 1011.1.2)
• Cylindrical design with “quick slide” adjustment from ceiling to wall mount for easy installation
• Panel includes “EXIT” wording with the ADA-compliant, modified accessibility symbol
• California Energy Commission (CEC) compliant
• Buy American Act (BAA) compliant
Specifications:
Illumination: Exit face is illuminated by long-life, high-intensity, red or green LEDs
Housing: Extruded aluminum enclosure with powder-coated finish
Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free NiCAD battery
Operating Temp: 10°C to 40°C (50°F to 104°F)
Run Time: CSA Listed 90 minute emergency run time, 24 hour recharge time
Electrical: Low voltage disconnect eliminates deep discharge, brownout, overload and short circuit protection
Legend: Fully-illuminated 6” characters with 3/4” stroke, fieldselectable directional chevrons, double-face panels are supplied with a mirror or white insert
Mounting: Surface ceiling, wall or end mount, includes canopy
Finishes: White
Certfications: CSA Listed, meets or exceeds UL 924, NEC requirements and NFPA 101, State of Connecticut
Building Code paragraph 1011.1.2, ADA Compliant
Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information and product registration instructions.
