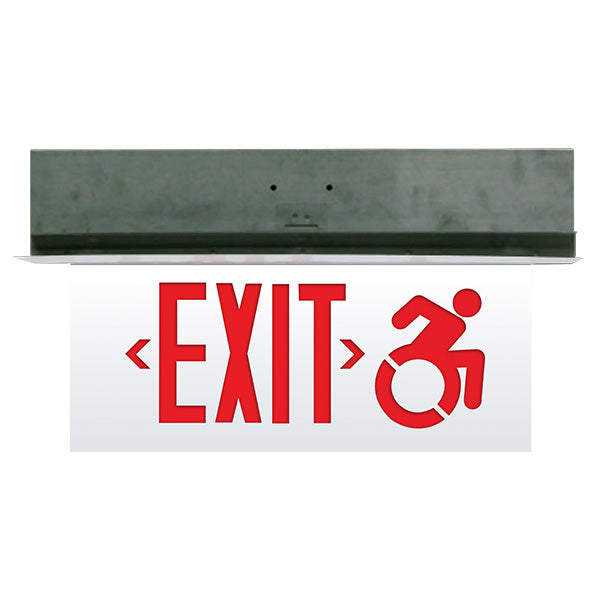

Barron Lighting CT90 Surface or Recessed Mount Wheelchair Accessible Edge-lit Exit Signs
Barron Lighting CT90 Surface or Recessed Mount Wheelchair Accessible Edge-lit Exit Signs
Specifications
Specifications
| Part Number# | CT90 |
|---|---|
| Type of Area: | Apartment Buildings, Office & Small Retail, Hospitals, Commercial Offices |
| Lamp Life: | 100,000 Hours |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, NEC, NFPA, UL Listed |
| Width: | 4.5" - 5.5" |
| Length: | 19.5" - 21.5" |
| Height: | 10.0" - 11.3" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's CT900E Surface or Recessed Mount Edge-Lit Exit Signs provide a compact and versatile solution for emergency signage needs. Featuring high-intensity red or green LEDs, these signs deliver bright and uniform illumination in an edge-lit design, complete with the State of Connecticut required modified accessibility symbol. The CT900E Series is available in both recessed and surface mount options, with a rugged 20-gauge steel back box, trim plate, and enclosure, ensuring durability and compliance with various standards, including the ADA, California Energy Commission (CEC), and Buy American Act (BAA) provisions. With maintenance-free NiCad batteries, CSA-listed 90-minute emergency run time, and multiple finish options, these exit signs ensure visibility and accessibility in diverse emergencies.
Features:
• Meets State of Connecticut Emergency Building Code requirements (Paragraph 1011.1.2)
• Panel includes “EXIT” wording with the ADA-compliant modified accessibility symbol
• Recessed and surface mount
• California Energy Commission (CEC) compliant
• Fixture series may be built to comply with the American Recovery and Reinvestment Act of 2009 (ARRA) requirements and Buy American provisions - call factory for details
Specifications:
Illumination: Long-life, high-intensity, red or green LEDs
Housing: Rugged 20 gauge steel back box, trim plate and enclosure
Input: 120/277VAC Dual primary, 60Hz
Battery: Maintenance-free NiCad battery
Operating Temp: 10°C to 40°C (50°F to 104°F)
Run Time: CSA Listed 90 minute emergency run time, 24 hour recharge time
Electrical: Low voltage disconnect eliminates deep discharge, brownout, overload and short circuit protection
Legend: Fully-illuminated 6” characters with 3/4” stroke, field selectable directional chevrons
Mounting: Ceiling recessed, wall recessed, surface ceiling, wall or end mount
Finishes: Brushed Aluminum, Polished Aluminum or White
Options: IV - Inverted Panel
TF - 120 Minute Run Time (NiCad)
USA - Meets Buy American Requirements
Certifications: CSA Listed, meets or exceeds UL 924M NEC requirements and NFPA 101, Meets State of Connecticut Emergency Building Code requirements (Paragraph 1011.1.2)
Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information and product registration instructions.
