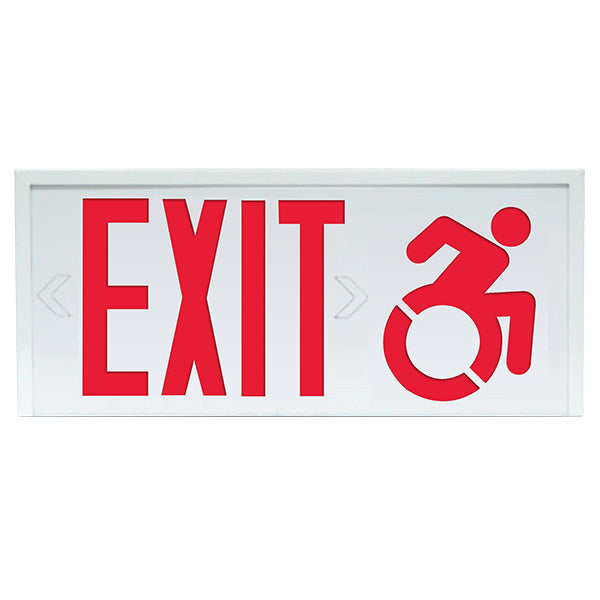

Barron Lighting CT700E Wheelchair Accessible Steel LED Exit Signs
Barron Lighting CT700E Wheelchair Accessible Steel LED Exit Signs
Specifications
Specifications
| Part Number# | Exitronix-Steel-Exit |
|---|---|
| Type of Area: | Apartment Buildings, Office & Small Retail, Hospitals, Commercial Offices |
| Lamp Life: | 100,000 Hours |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, NEC, NFPA, UL Listed |
| Dimensions: | 18.5" x 2.1" x 7.5" |
| Width: | 2.1" |
| Length: | 18.5" |
| Height: | 7.5" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting CT700E Steel LED Exit Signs feature a contemporary slim profile steel housing, ideal for commercial and institutional installations. These signs comply with the ADA and State of Connecticut emergency building codes, incorporating the required modified accessibility symbol. With high-intensity red or green LEDs, they ensure bright and uniform illumination, housed in a rugged 20-gauge steel enclosure for added durability. Offering versatile mounting options (ceiling, end, or wall), these exit signs include maintenance-free NiCad batteries, ensuring reliable 90-minute emergency run time and robust electrical protections.
Features:
• Meets State of Connecticut Emergency Building Code requirements (Para. 1011.1.2)
• Face includes “EXIT” legend with the ADA-compliant, modified accessibility symbol
• Ceiling, end, or wall-mounted
• Constructed of rugged 20 gauge steel
Specifications:
Illumination: Long-life, high-intensity, red or green LEDs.
Housing: Rugged 20 gauge steel with a power-coated finish.
Input: 120/277VAC dual primary, 60Hz.
Battery: Maintenance-free NiCad battery.
Operating Temp: 0°C to 40°C (32°F to 104°F)
Run Time: CSA Listed 90-minute emergency run time, 24 hour recharge time.
Electrical: Brownout Protection
Low Voltage Disconnect
Overload and Short Circuit Protection
Legend: Fully illuminated 6” characters with 3/4” stroke and field-selectable directional chevrons.
Mounting: Ceiling, end or wall mounted, canopy included.
Finishes: Black or White
Certifications: CSA listed and meets or exceeds the following: UL 924, NEC requirements, and NFPA 101. Specifically designed to meet the requirements of the State of Connecticut, Building Code
paragraph 1011.1.2. Assembled in the USA with global components. American Recovery and Reinvestment Act (ARRA) compliant.
Warranty: Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information.
