Barron Lighting CLED 1.5 Watt LED Light Bar Double Face Exit Sign Combo Unit with NiCad Battery
Barron Lighting CLED 1.5 Watt LED Light Bar Double Face Exit Sign Combo Unit with NiCad Battery
Specifications
Specifications
| Part Number# | CLED U BL G2 |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Wattage: | 1 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimensions: | 12.6" x 1.9" x 8.4" |
| Width: | 1.9" |
| Length: | 12.6" |
| Height: | 8.4" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details

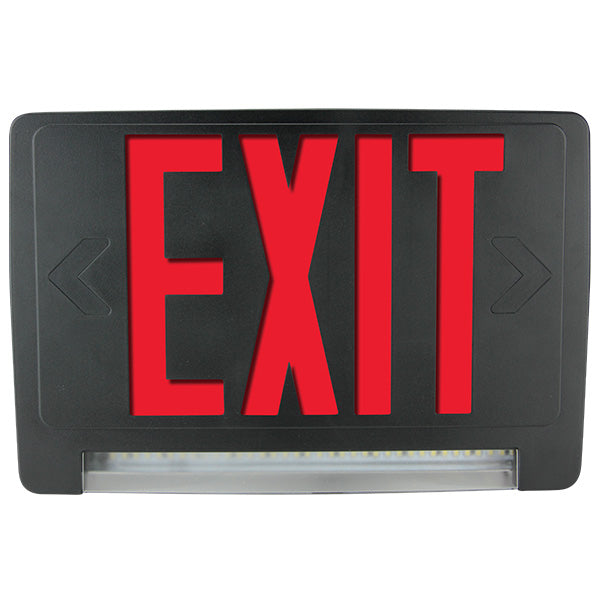

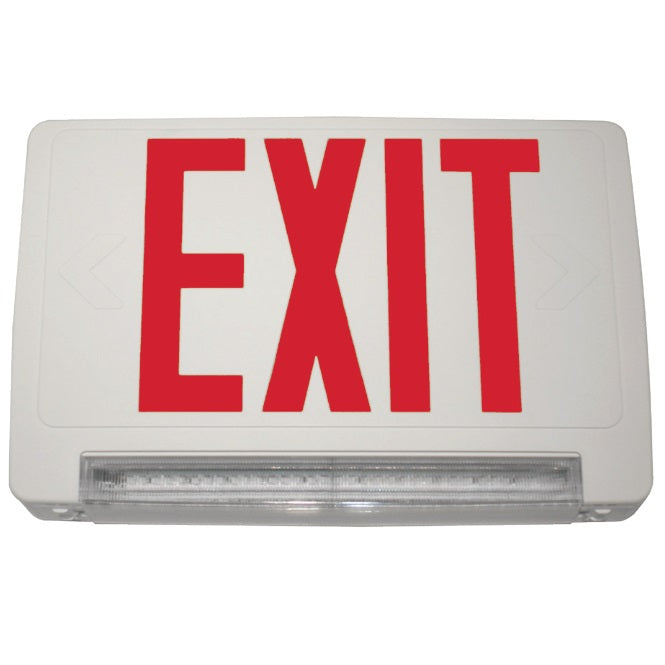

Barron Lighting CLED LED Exit Sign and Emergency Light Combo
The Revolution series combines LED exit illumination with dependable, low-profile emergency lighting in a unique adjustable Light Bar design. Mount it above a door or in a restricted space for long-life service with a maintenance-free NiCad battery.
Features and Benefits
- Adjustable Light Bar with ultra-bright, energy-efficient white LEDs for emergency illumination.
- Remote capable: operates up to one MLED-LO remote lamp head.
- Universal configuration includes two faceplates, a backplate, and a mounting canopy.
- High-output, long-lasting red or green LED exit illumination.
- Field-selectable directional chevrons.
- Ceiling, end, or wall mounting.
- Available in black or white finishes.
- Optional G2 Guardian Self-test/Self-diagnostics.
- Suitable for damp locations; UL 924 Listed.
- California Energy Commission (CEC) compliant.
Technical Specifications
- Emergency lighting: 1.5W ultra-bright white LEDs.
- Remote capacity: 1W, 9.6V.
- Housing: Injection-molded, UL 94 5VA flame-retardant, high-temperature thermoplastic.
- Input: 120/277VAC dual primary, 60Hz.
- Battery: Maintenance-free NiCad.
- Emergency run time: UL Listed 90-minute operation.
- Recharge time: 24 hours.
- Electrical protection: Low-voltage disconnect, overload and short-circuit protection; brownout circuit on G2 models only.
- Optional diagnostics: G2 Guardian Self-test/Self-diagnostics.
Warranty
Components that fail due to a manufacturer's defect are covered for five years, with a separate five-year prorated warranty on the battery. Physical damage, abuse, and instances of uncontrollable natural forces are excluded. See the full Exitronix warranty document for details.
