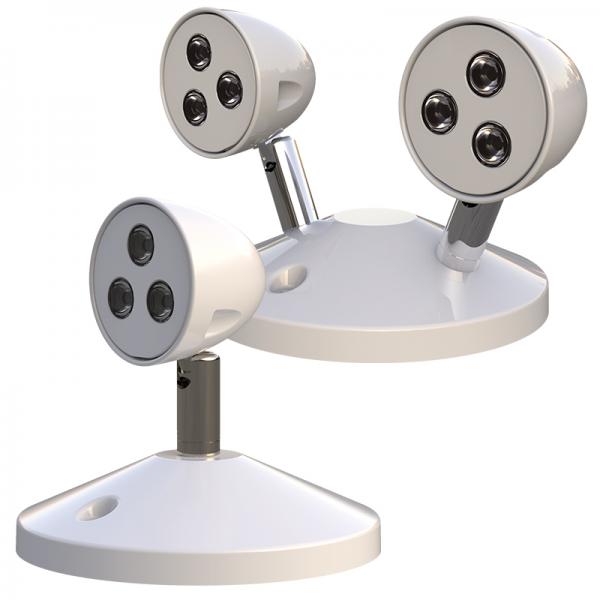

Barron Lighting CHIR City of Chicago Indoor Remote Steel LED Single or Double Lamp Head
Barron Lighting CHIR City of Chicago Indoor Remote Steel LED Single or Double Lamp Head
-
Specsheet:
Specifications
Specifications
| Part Number# | CHIR |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Retail |
| Color Temp: | 5000K - Daylight White |
| Lumen Output: | 200 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, NEC, NFPA, UL Listed |
| Width: | 4.90" |
| Length: | 4.90" - 6.90" |
| Height: | 4.20" - 4.80" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's CHIR City of Chicago Indoor Remote Steel LED Lamp Head is designed to comply with the City of Chicago standards. Compatible with CHIX and CHIM series products, the CHIR series features a durable 20-gauge steel construction with a white powder-coated finish. It includes fully adjustable flex arms for the lamps and mounts directly to a J-box for easy surface ceiling or wall installation. The LED lamps produce 200 lumens per lamp head and offer a 5000K color temperature with a 22° beam angle.
Features:
• Suitable for the City of Chicago
• Compatible with CHIX and CHIM series
• Lamps include fully adjustable flex arm
• Mounts directly to J-box, suitable for surface ceiling or wall mount installations
• Up to 40' on-center spacing
Specifications:
• 1.5W (Single-head) or 3W (Double head) LED lamps produce 200 lumens per lamp head; 5000K CCT, 22° beam angle
• 20 Gauge steel with fully adjustable arm
• 6VDC
• 0°C to 50°C (32°F to 122°F)
• Surface ceiling or wall mount
• White Finish
• UL 924 Damp Location Listed, meets or exceeds City of Chicago, NEC requirements, and NFPA 101
• Any component that fails due to a manufacturing defect is guaranteed for five years. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information (Terms and Conditions apply)
