Barron Lighting CHIM City of Chicago Steel LED Emergency Lighting Unit
Barron Lighting CHIM City of Chicago Steel LED Emergency Lighting Unit
-
Specsheet:
Specifications
Specifications
| Part Number# | CHIM |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, NEC, NFPA, UL Listed |
| Dimensions: | 12.1" x 2.2" x 8.9" |
| Width: | 2.2" |
| Length: | 12.1" |
| Height: | 8.9" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

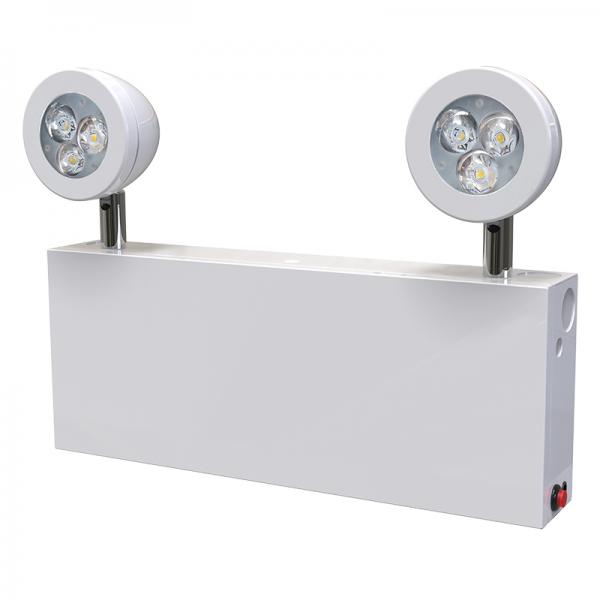

Barron Lighting's CHIM LED Emergency Lighting Unit is sleek, compact, and designed for the City of Chicago, offering both high performance and reliability. It comes equipped with a Lithium Ion battery and is constructed from robust 20 gauge steel with a white powder-coated finish that resists scratches and corrosion. It provides at least 90 minutes of illumination during a power outage and can be mounted on the back, with additional knockouts for side and top installations.
Features:
• Suitable for City of Chicago
• 20 Gauge steel enclosure
• Two adjustable long-life LED lamp heads
• Maintenance-free LiFePO4 battery
• Remote capable
• Up to 62' on-center spacing
Specifications:
• Two long-life, high-intensity LED lamp heads with (3) LEDs per lamp head. Two 2.85W lamp heads provide 396 lumens each, rotates vertically 0°- 90° from nadir and rotates horizontally 0°- 350°. Lamp heads may be mounted on top or on side of unit
• 20 Gauge steel with a white powder-coated finish
• Maintenance-free LiFePO4 battery
• Universal input voltage - 120 to 277VAC, 50/60Hz
• 5°C to 45°C (41°F to 113°F)
• UL Listed 90-minute emergency run time, 24-hour recharge time
• Low voltage disconnect eliminates deep discharge, brownout, short circuit, and overload protection
• Wall mounted using a universal J-box mounting pattern or rear keyhole slots; knockouts for conduit entry on side and top provided
• White RC = Remote Capacity - 6V, 3W (6.8W total) (one additional double lamp head or two single lamp heads, see CHIR Indoor Remote or RL1 Outdoor Remote for more information)
• UL 924 Damp Location Listed, meets or exceeds City of Chicago, NEC requirements, and NFPA 101
• Any component that fails due to a manufacturing defect is guaranteed for five years with a separate five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information (Terms and Conditions apply)
