Barron Lighting CH900X City of Chicago Approved Edge-lit LED Exit Sign
Barron Lighting CH900X City of Chicago Approved Edge-lit LED Exit Sign
-
Specsheet:
Specifications
Specifications
| Part Number# | CH900X |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Industrial & Warehouse, Office & Small Retail, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, NEC, NFPA, UL Listed |
| Width: | 1.63" - 4.31" |
| Length: | 14.04" - 19.19" |
| Height: | 11.50" - 11.69" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting's CH900X LED Edge-lit Exit Sign, approved by the City of Chicago, is available in both surface and recessed mounting options. It comes in AC-only or self-powered models, with the latter featuring a Lithium Ion battery that lasts at least 90 minutes during an outage. The recessed model has an extruded aluminum trim plate and a 20-gauge steel housing, while the surface mount version includes an extruded aluminum housing and a steel canopy.
Features:
• Suitable for City of Chicago Emergency EXIT requirements
• Exit illuminated with high-output, long-life white LEDs
• Universal input voltage from 120VAC to 277VAC, 50/60Hz
• Recessed or surface mount
Specifications:
• Long-life, high-intensity, white LEDs

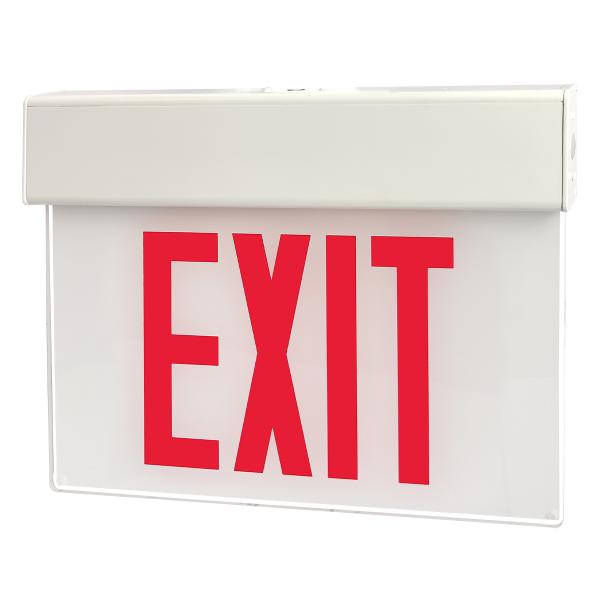

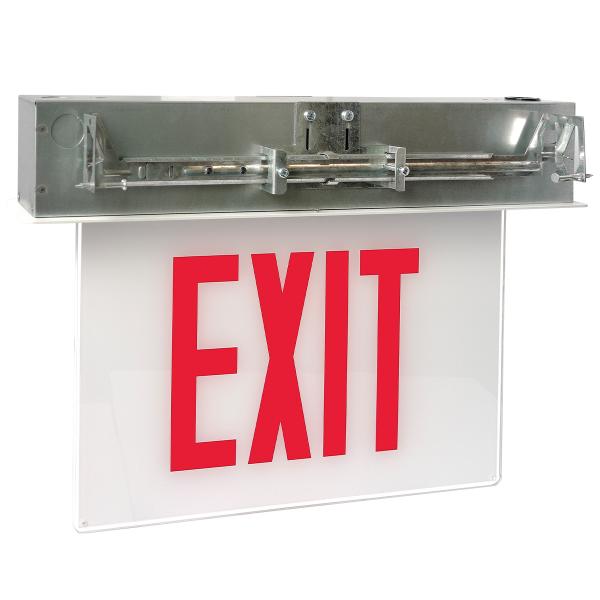

• Surface mount: Extruded aluminum housing (steel canopy included) Recessed mount: 20 Gauge steel housing with a white powder-coated finish on an extruded aluminum trim plate (galvanized steel hanger bar assembly included)
• Universal input, 120 to 277VAC, 50/60Hz
• Maintenance-free LiFePO4 battery
• UL Listed 90 minute emergency run time, 24 hour recharge time
• Low voltage disconnect eliminates deep discharge, brownout protection, overload and short circuit protection
• Fully illuminated red 6" characters with 3/4" stroke; ships standard with single-face CH900X-PANEL-3 (EXIT with no arrows)
• CH900X-S can be ceiling, end or wall mounted (canopy included) as well as pendant (by others) mounted; CH900X-R can be recessed mounted into ceiling or wall.
• White finish
• UL 924 Listed, meets or exceeds City of Chicago, NEC requirements and NFPA 101
• Any component that fails due to a manufacturing defect is guaranteed for five years, with a five-year prorated warranty on the battery. The warranty does not cover physical damage, abuse, or instances of uncontrollable natural forces. See the full Exitronix warranty document for detailed information. (Terms and conditions apply)
