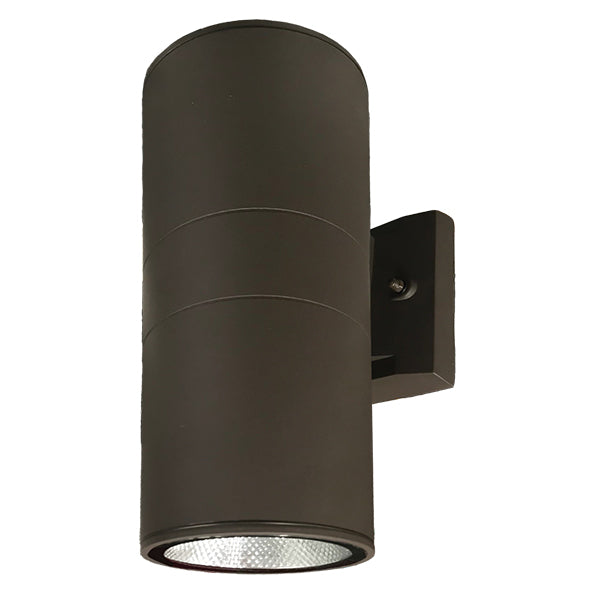

Barron Lighting BCY-30 30 Watt LED Cylinder Wallpack Fixture Non-Dimmable
Barron Lighting BCY-30 30 Watt LED Cylinder Wallpack Fixture Non-Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | BCY-30 |
|---|---|
| Type of Area: | Home & Architectural, Wall Mount & Building Exteriors |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2446-2509 |
| Wattage: | 30 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ETL Listed |
| CRI: | 80 |
| Dimensions: | 4.3" x 11.8" |
| Width: | 4.3" |
| Height: | 11.8" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.7 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
Barron Lighting BCY-30 30 Watt LED Cylinder Wallpack Fixture Non-Dimmable
SPECIFICATIONS
Construction:
• 4” Diameter cylinder, aluminum housing with bronze power coated finish
•Glass lenses and aluminum reflector on both ends
•Switch in the back for up, down or up and down light selection
Optics/LEDs:
•Available in 3000K, 4000K and 5000K CCT
• 30W System provides up to 2509 lumens
• Up/down lighting will provide up to 1200 lumens from each side
• 45° Beam angle up/down
• CRI ≥80
• L70 >100,000 hours
Electrical:
• 120VAC, 50/60Hz input
•Internal switch allows the installer to choose up light, down light orup/down light
Installation:
• Mounts to a standard 3-½” or 4” square electrical J-box
• Housing mounts to backplate for ease of installation
• Switch providing up light, down light or up/down light control is located behind the backplate
Testing & Compliance:
• cETLus Listed for Wet Locations
•Operating temperatures: -20°C to 40°C (-40°F to 104°F)
Warranty:
•Five Year Warranty (Terms and Conditions Apply)
