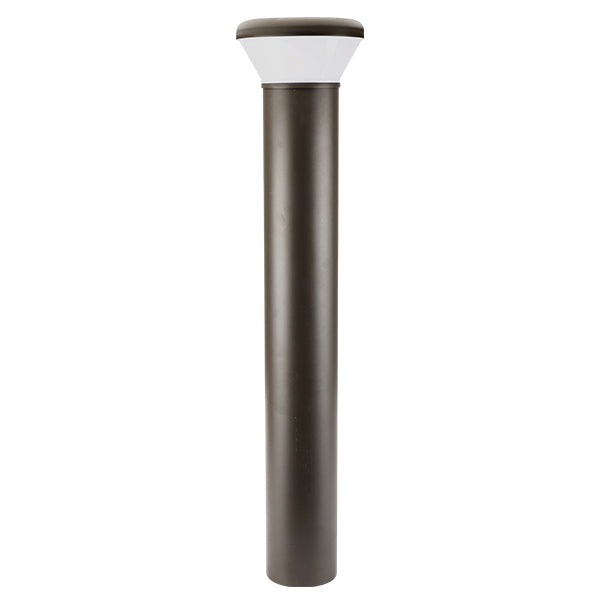

Barron Lighting AXB-VS DLC Listed 26 Watt Round LED Bollard Fixture Dimmable
Barron Lighting AXB-VS DLC Listed 26 Watt Round LED Bollard Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | AXB-VS |
|---|---|
| Type of Area: | Home & Architectural, Pole / Street / Parking Lot, Hotels, Road & Street |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,000 |
| Wattage: | 26 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, UL Listed |
| CRI: | 80 |
| Dimensions: | 5.5" x 42.0" |
| Width: | 5.5" |
| Height: | 42.0" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 12 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Barron Lighting AXB series is a DLC-listed 26 Watt Round LED Bollard Fixture that is dimmable. It stands at 42 inches in height and delivers 3000 lumens with an 80 CRI. Available in 3000K or 4000K color temperature options, this bollard comes in Black, Bronze, or Silver finishes. It is cULus Listed for Wet Locations, boasts a 100,000-hour lifespan, and is backed by a 5-year warranty. This fixture is ideal for providing reliable and energy-efficient lighting in outdoor settings.
Construction:
• Die-cast aluminum head and base in a powder coat finish
• Extruded round aluminum body in a powder coat finish
• 42” Height with clean simple aesthetics that fit almost any environment
Optics/LEDs:
• UV stabilized polycarbonate diffused lens providing uniform soft light
• LEDs are pointing down to provide maximum lighting to the ground and minimize glare
• Vacuum metalized polycarbonate reflector to help diffuse light
• 360° Symmetrical distribution
• 26W Unit providing 3000 lumens
• Efficacies of 115 LPW maximize energy savings and utility rebates
• Available in 3000K and 4000K CCT
• L70 >100,000 hours
• Reported L90 of 43,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 1-10V Dimming driver
Installation:
• Housing slips over the bollard base and is secured with four set screws
• Bollard base easily slips over anchor bolts and can be leveled using leveling screws supplied by others
• Four (4) 5/16” x 12.4" anchor bolts, nuts, and washers (included), 2.84” bolt circle
Testing & Compliance:
• cULus Listed for Wet Locations
• Operating temperatures: -40°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) Qualified (verify QPL for specific models)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
