ATG Electronics HBZ-L1 Series LED Linear Highbay Fixture for Hazardous Location
ATG Electronics HBZ-L1 Series LED Linear Highbay Fixture for Hazardous Location
Specifications
Specifications
| Part Number# | HBZ-L1 |
|---|---|
| Type of Area: | Hazardous Location, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial, Hazardous & Demanding |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 5,295 - 15,582 |
| Wattage: | 120 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, DLC Approved, IP65 / IP66 / IP67, UL Listed |
| Width: | 5'' |
| Length: | 23.62'' - 47.27'' |
| Height: | 6.81'' |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 14.99 - 21.16 lbs |
| Manufacturer: | ATG Electronics |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

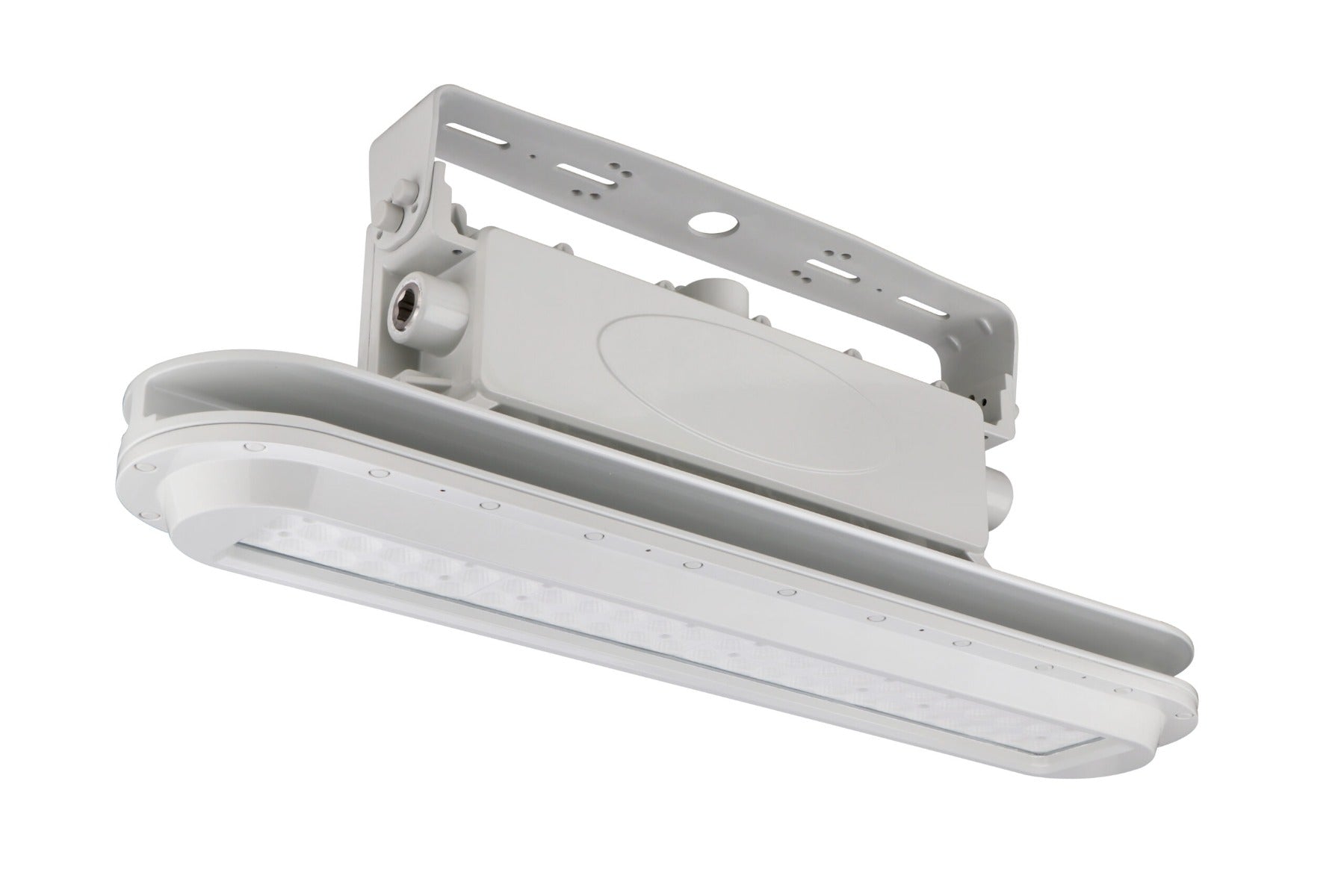

ATG's HBZ-L1 LED Linear Highbay Fixture is durable and explosion-proof, ideal for areas with ignitable and combustible elements. The high-temperature silicone gasketing ensures a secure seal, while stainless steel exposed fasteners contribute to the fixture's robustness. This LED highbay fixture offers flexibility with multiple beam spread options, with 110° coming standard and 35°/60°/80° available as optional choices. Users can choose from yoke mount, ceiling mount, pendant mount (3/4 NPT), chain mount, or pipe mount as additional optional mounting configurations. The fixture holds a C1D2 certification, making it suitable for hazardous locations and meeting the requirements for Groups A, B, C, D.
Features:
• Durable, Explosion Proof Design, Ideal for Areas with Ignitable and Combustible Elements
• High Temperature Silicone Gasketing
• Stainless Steel Exposed Fasteners
• Multiple Beam Spread Available, 110° Comes Standard, 35°/60°/80° Optional
• Hook & Cable Comes Standard
• Yoke Mount / Ceiling Mount / Pendant Mount(3/4 NPT) / Chain Mount / Pipe Mount Optional
• C1D2, Groups A, B, C, D
• LED L70 Life Time>74,000 Hours, 5 Years Warranty Provided
