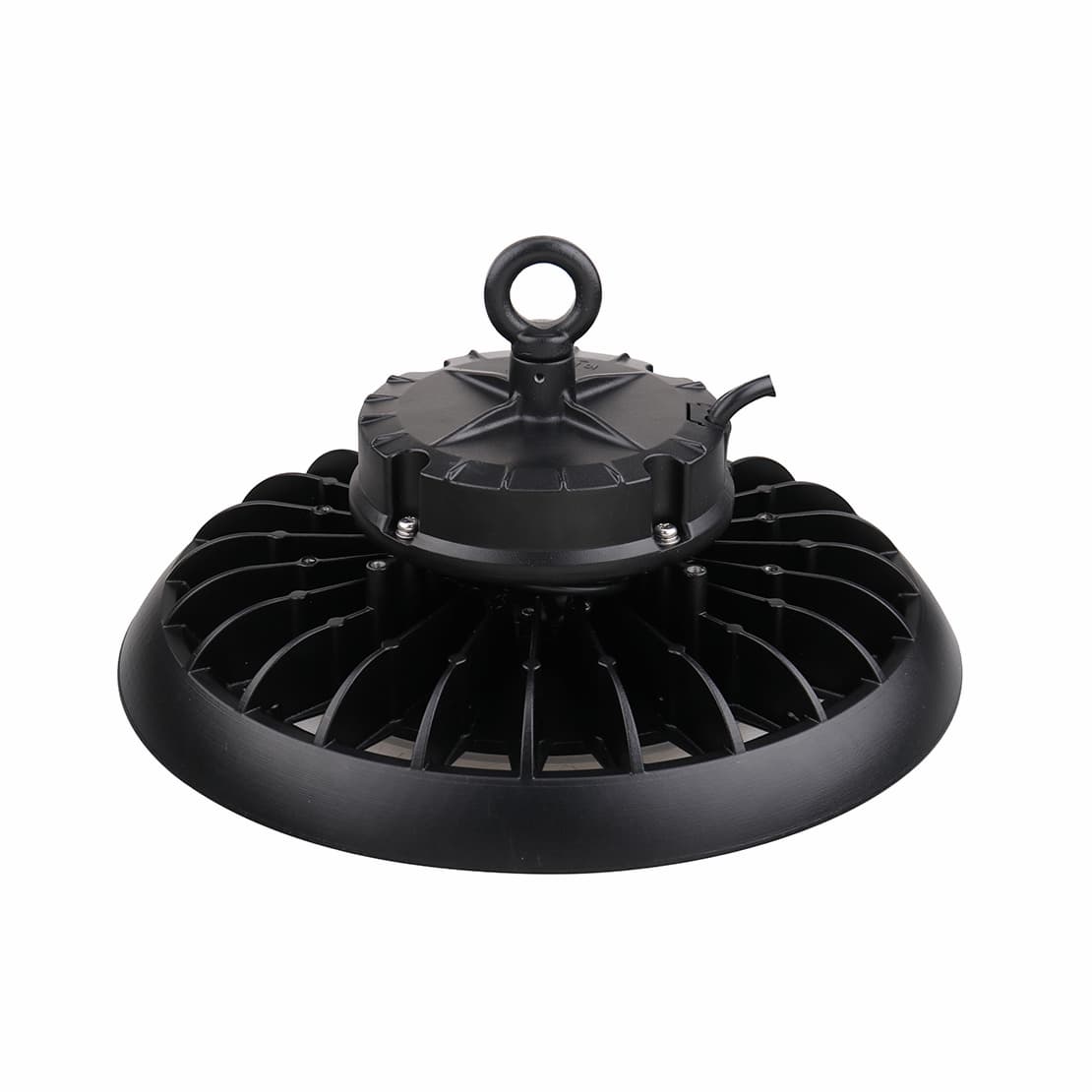

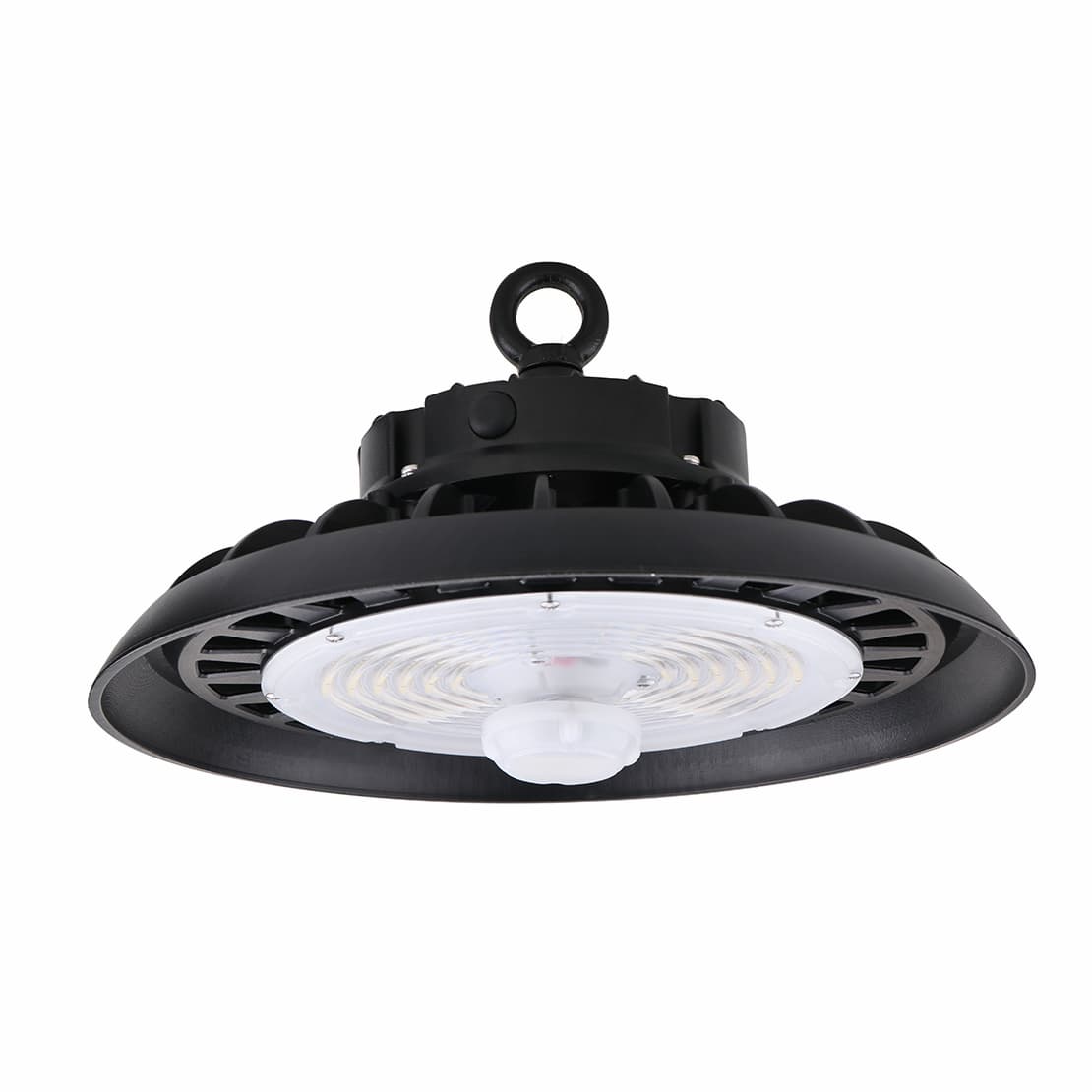

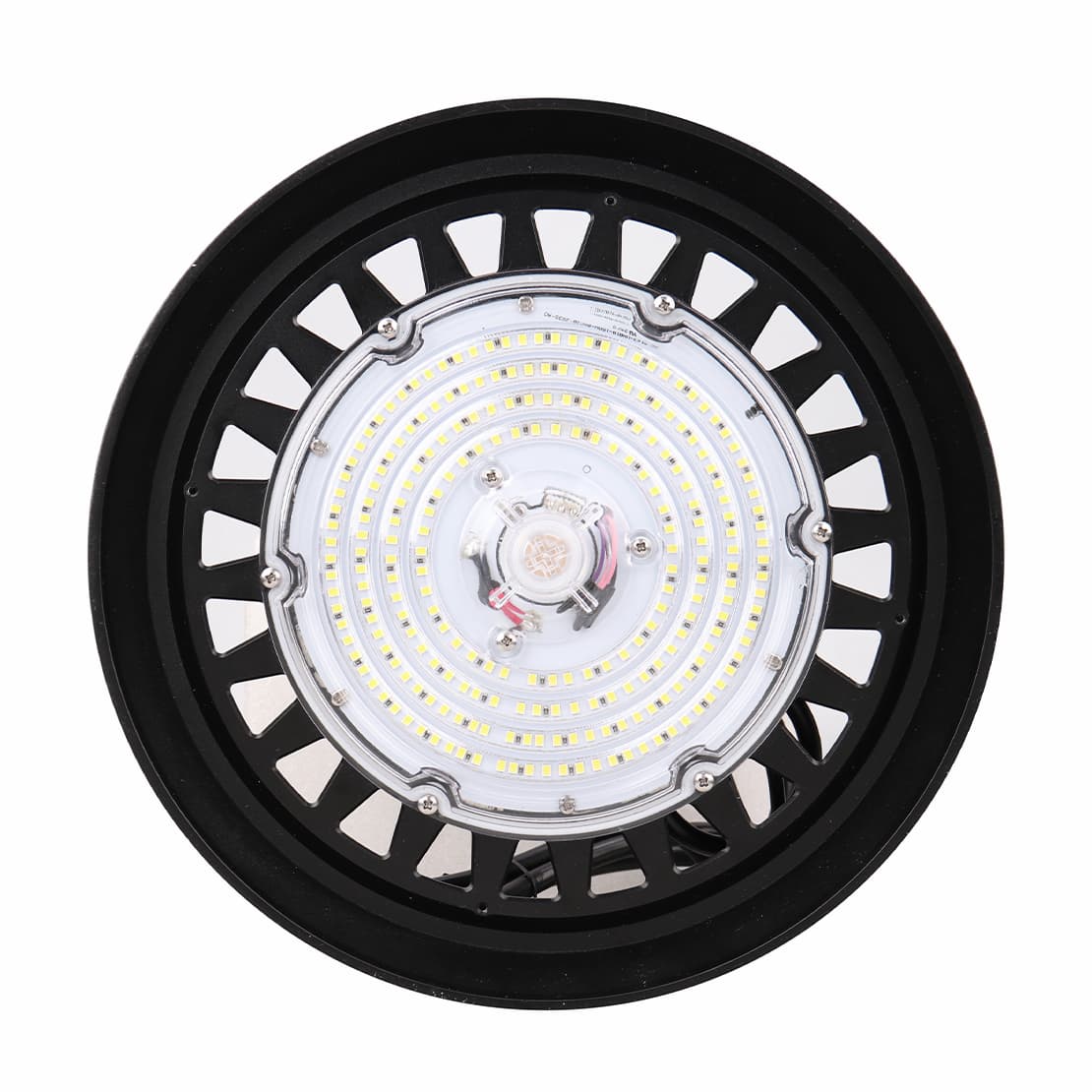

ATG Electronics HBUF Helix G4 LED Round Highbay Fixture Dimmable with Clear Lens
ATG Electronics HBUF Helix G4 LED Round Highbay Fixture Dimmable with Clear Lens
Specifications
Specifications
| Part Number# | HBUF |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Hospitals, Education, Factory / Industrial, Healthcare / Disinfection |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 13,320 - 34,560 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, UL Listed |
| CRI: | 80+ |
| Length: | 11.2" - 12.8" Dia |
| Height: | 7.2" - 7.7" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Manufacturer: | ATG Electronics |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ATG's HBUF Helix G4 LED Round Highbay Fixture combines versatility and durability. With Power Selectable Technology for the 150W model and fixed wattage for the 200W and 240W models, it adapts to various needs. Its powder-coated aluminum housing and polycarbonate lens ensure robustness. Featuring optional PNP multifunction sensors, a 0-10V dimmable driver with 12V AUX power tap, and multiple mounting options, it's designed for efficiency and ease of installation. Rated IP65 for wet locations and DLC Premium listed, this fixture is a reliable choice for demanding environments.
Features:
• Power Selectable Technology (150W Model): covering 3 wattage selections
• Fixed Wattage Fixtures (200W and 240W Models)
• Powder-coated aluminum housing, polycarbonate lens
• Optional PNP multifunction sensor, receptacle pre-installed
• 0-10V dimmable driver, featuring 12V AUX power tap
• RELOC options available
• Ring-bolt mount included as default, pendant mount kit available*
• PC & Aluminum refractor offered
• IP65 rated for wet location application
• DLC Premium listed
